Mobile cone crushers

We understand your exacting aggregate product quality demands; Sandvik Hydrocone and S type gyratory mobile cone crusher series can help you meet the challenges you face on a daily basis. Our mobile cone crushers are ideal for providing you the highest quality end products to maximize your bottom line.

Tried and tested technology

Our range of mobile cone crushers provides you with high-quality materials and excellent shape for secondary and tertiary crushing. Tried and tested solutions meeting any size reduction challenge offer the flexibility necessary to ensure that each model in the range can crush almost any application.

Our hydraulically adjusted Hydrocone crushers are robust and have an easy to service design with minimal operator intervention, making them not only versatile, but also easy to maintain. The vast range of chamber options and eccentric throw adjustments makes this one of the most versatile and trusted cone ranges on the market today.

Tracked range of cone crushers

Model Weight kg (lbs) Max. feed size mm (in.) Capacity up to mtph (stph) No. of products
QS332 41,831 (92,221) 400 (15.7) 344 (379) 1
US440i 53,700 (118,388) 500 (19.7) 600 (660) 1
US440E 81,700 (180,150) 500 (19.7) 600 (660) 1
US640E 111,000 (244,700) 622 (24) 900 (990) 1
QH332 38,031 (86,048) 214 (8.4) 220 (242) 1
QH441 52,354 (115,420) 250 (9.8) 388 (435) 1
UH440i 48,000 (105,822) 250 (9.8) 400 (440) 1
UH440E 77,200 (170,755) 250 (9.8) 400 (440) 1
UH640E 86,000 (189,600) 321 (12.6) 600 (660) 1

Wheeled range of cone crushers

All units in our wheeled range of cone crushers have been designed for simple and efficient operation with a soft starting crusher for trouble free operation. Built to meet the same high standard as our tracked equipment, all onboard components are electrically driven giving a reliable and cost effective solution, whilst at the same time minimal maintenance.

Model Weight kg (lbs) Max. feed size mm (in.) Capacity up to mtph (stph) No. of products
US316 38,100 (83,996) 300 (11.8) 325 (358) 1 - 3
US373* 91,500 (41,503) 360 (14) 300 (330) 1
UH311 35,150 (77,505) 185 (7¼) 200 (220) 1 - 4
UH312 38,840 (85,627) 215 (8½) 250 (275) 1 - 4
UH316 35,000 (77,161) 185 (7¼) 250 (275) 1 - 3
UH412 33,800 (74,516) 215 (8½) 300 (330) 1 - 4
UH320E 48,500 (106,900) 185 (7¼) 200 (220) 3 - 4
UK373* 65,250 (153,000) 215 (8½) 475 (527) 2 - 3
UH373* 41,503 (91,500) 215 (8½) 350 (385) 1 - 2

*Exclusive to North America only.

Downloads

Brochure - Mobiles Tracked Range (PDF document, 6.3 MB)

Brochure - Mobiles Heavy Range (PDF document, 4.9 MB)

Brochure - Mobiles Wheeled Range (PDF document, 5.7 MB)

Brochure - Mobiles Wheeled USA Range (PDF document, 29.4 MB)

  • Tried and tested technology

    Our range of mobile cone crushers provides you with high-quality materials and excellent shape for secondary and tertiary crushing. Tried and tested solutions meeting any size reduction challenge offer the flexibility necessary to ensure that each model in the range can crush almost any application.

    Our hydraulically adjusted Hydrocone crushers are robust and have an easy to service design with minimal operator intervention, making them not only versatile, but also easy to maintain. The vast range of chamber options and eccentric throw adjustments makes this one of the most versatile and trusted cone ranges on the market today.

  • Mobile cone crushers designed for versatility

    We know your applications, and we understand how quickly your needs can change; that's why our mobile cone crushers are designed to offer you ultimate versatility. Features such as the automatic setting regulation system and the remote camera and level sensor, enable you to monitor and optimize production in real time; the added advantage of tracking of liner wear will serve to minimize interruptions and downtime.

    Offering large reduction ratios with minimal fines production, Sandvik mobile cone crushers are the ideal solution for secondary and tertiary crushing. Our market leading "S" type cones can accept a feed size up to 90% larger than current standard cones; they can even be run as primary crushers on gravel applications. High mobility and quick setup times help you start your projects on time, every time.

    As one of the world's leading manufacturers of mobile cone crushers, we understand how you need to have that equipment work in harmony to provide the best possible end product. Our extensive time spent in the field enables us to more fully understand the challenges you face when it comes to crushing; to help you meet those challenges, we are constantly developing and improving our products.

12 results

  • QH332 cone crusher with hanging screen
    Tracked cone crushers

    QS332 Cone crusher

    Equipment
    Sandvik CS430 cone
    Max. feed size
    400 mm (16 in.)
    Capacity
    344 mtph (379 stph)
    QS332 Cone crusher
  • US440i mobile cone crusher
    Tracked cone crushers

    US440i Cone crusher

    Equipment
    Sandvik CS440 cone
    Max. feed size
    500 mm (20 in.)
    Capacity
    344 mtph (379 stph)
    US440i Cone crusher
  • QH332 cone crusher with hanging screen
    Tracked cone crushers

    QH332 Cone crusher

    Equipment
    Sandvik CH430 cone
    Max. feed size
    214 mm (8 in.)
    Capacity
    220 mtph (242 stph)
    QH332 Cone crusher
  • Tracked cone crushers

    QH441 Cone crusher

    Equipment
    Sandvik CH440 cone
    Max. feed size
    250 mm (10 in.)
    Capacity
    388 mtph (435 stph)
    QH441 Cone crusher
  • UH440i mobile cone crusher
    Tracked cone crushers

    UH440i Cone crusher

    Equipment
    Sandvik CH440 cone
    Max. feed size
    250 mm (10 in.)
    Capacity
    400 mtph (440 stph)
    UH440i Cone crusher

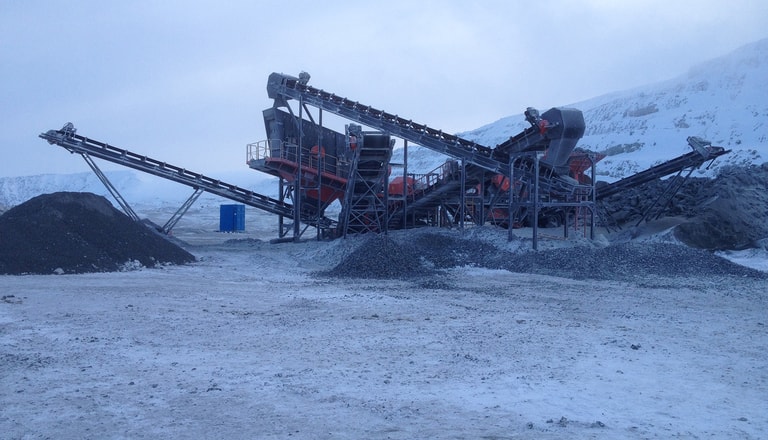

  • US316 cone crusher
    Wheeled cone units

    US316 Cone crusher

    Equipment
    Sandvik CS430 cone, SA1853 triple deck screen
    Max. feed size
    360 mm (14 in.)
    Capacity
    Up to 325 mtph (358 stph)
    US316 Cone crusher
  • UH311 wheeled cone crusher
    Wheeled cone units

    UH311 Cone crusher

    Equipment
    Sandvik CH430 cone, SA1854 four deck screen
    Max. feed size
    185 mm (7 in.)
    Capacity
    Up to 200 mtph (220 stph)
    UH311 Cone crusher

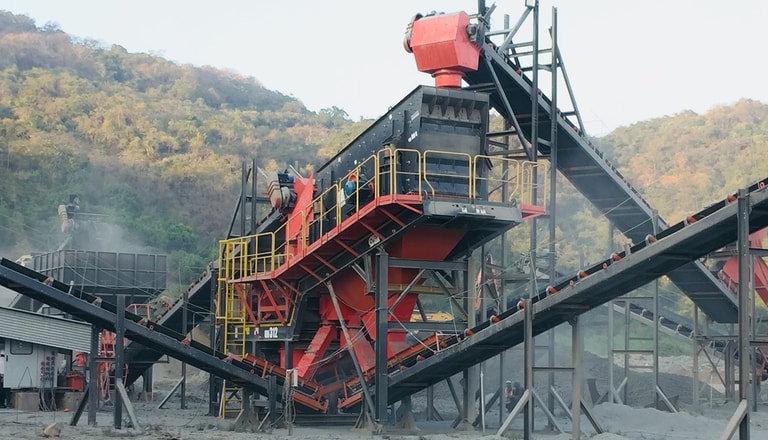

  • UH312 wheeled cone crusher
    Wheeled cone units

    UH312 Cone crusher

    Equipment
    Sandvik CH440 cone, SA1854 four deck screen
    Max. feed size
    215 mm (9 in.)
    Capacity
    Up to 300 mtph (330 stph)
    UH312 Cone crusher
  • Wheeled cone units

    UH316 Cone crusher

    Equipment
    Sandvik CH430 cone, SA1853 triple deck screen
    Max. feed size
    185 mm (7 in.)
    Capacity
    Up to 250 mtph
    UH316 Cone crusher

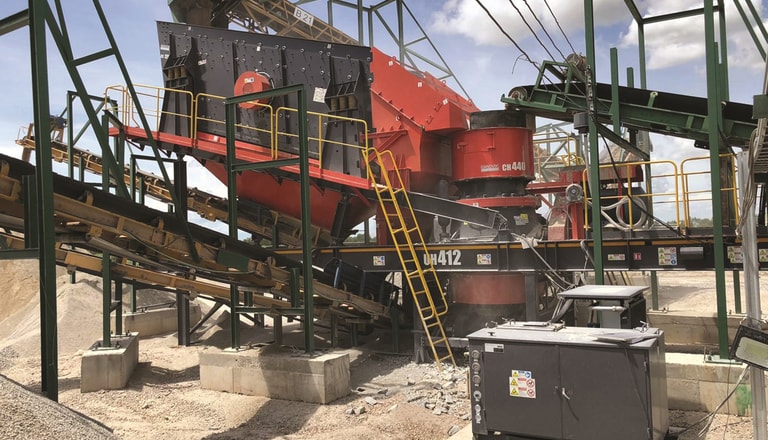

  • UH412 wheeled cone crusher
    Wheeled cone units

    UH412 Cone crusher

    Equipment
    Sandvik CH440 cone, SA2164 four deck screen
    Max. feed size
    215 mm (9 in.)
    Capacity
    Up to 300 mtph (330 stph)
    UH412 Cone crusher
  • Wheeled dual-stage units

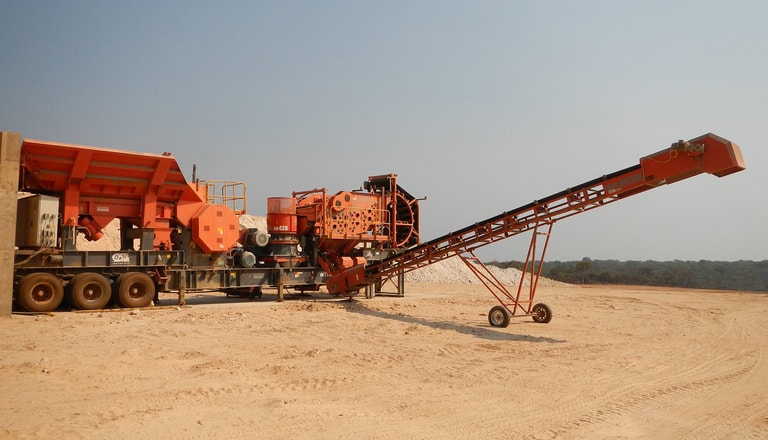

    UD211 Dual-stage crushing unit

    Equipment
    Sandvik CJ409 jaw, CH420 cone
    Feed opening
    895 x 660 mm (35 x 26 in.)
    Max. feed size jaw
    600 mm (24 in.)
    Max. feed size cone
    130 mm (5 in.)
    Capacity
    Up to 150 mtph (165 stph)
    UD211 Dual-stage crushing unit
  • Wheeled units USA

    US373 Cone crusher

    Equipment
    Sandvik CS430 cone
    Max. feed size
    14 in. (360 mm )
    Capacity
    Up to 330 stph (300 mtph)
    US373 Cone crusher
