Tracked cone crushers

QS332 Cone crusher

Sandvik CS430 cone
Max. feed size
400 mm (16 in.)
344 mtph (379 stph)

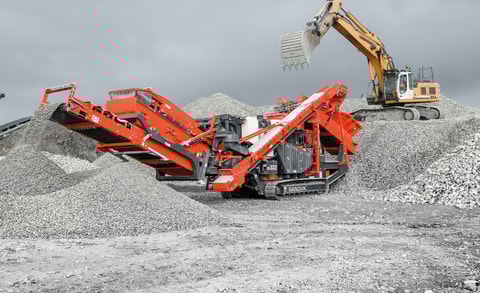

QH332 cone crusher with hanging screen

Sandvik QS332 is a compact, robust mobile secondary cone crushing solution designed for versatility and ease of operation. Fitted with Sandvik CS430 "S" type gyratory cone crusher, it is capable of accepting large feed sizes whilst achieving high production capacities.


Product data

Sandvik CS430 cone
Max. feed size
400 mm (16 in.)
344 mtph (379 stph)
C9 / C9.3 Acert 261
Transport length
15.8 m (51.1 ft)
Transport width
2.8 m (9.2 ft)
Transport height
3.8 m (12.5 ft)
52,500 kg (115,742 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

Additional product information

  • CS430

    Sandvik CS430 cone crusher comes equipped with a Hydroset CSS regulation system that will automatically optimize production and keep track of liner wear. This means that your production levels are always as high as possible, with a minimum of downtime for the machine.

    With a choice of three crushing chambers, a number of throws and eccentric bush settings, it is one of the most versatile cone crushers on the market today.

    As with all Sandvik equipment, developments are based on extensive research and customer feedback. As a result, we fitted Sandvik QS332 with an automatic level sensor above the crushing chamber to help you control the feed rate. This will minimize operator intervention and ensure you maximize production and reduction.

    Also within this range is Sandvik QH332 and QH441 cone crusher.

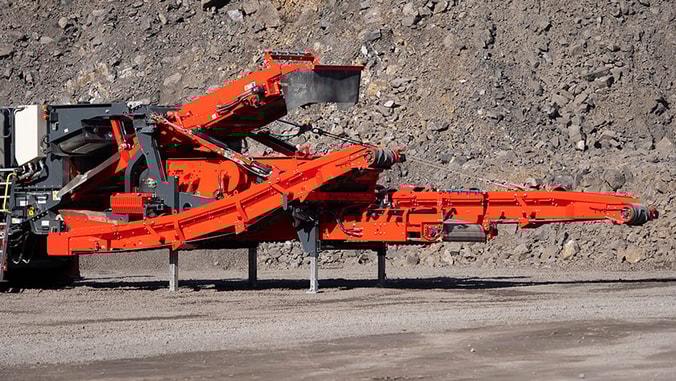

  • Versatility with modular hanging screen

    We offer an optional modular double deck hanging screen (HS) which has been designed to maximize productivity and profitability, giving accurately sized products ready for immediate use. It enables two screened products to be produced and any oversize recirculated back into the crusher.

    Cross compatible with our 2-series of crushers; QI442, QH332 and QS332 models, the modular screen is self-contained and can be installed or removed from the plant in less than 30 minutes without the need for any additional lifting equipment on site.

    Our patent pending hanging screen option delivers multi-functionality as a 1, 2 or 3-way split screener offering unrivalled flexibility.

  • Additional advantages

    • User-friendly PLC control system
    • Optional double or single deck hanging screen for 1, 2 or 3 way split
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

Sandvik launch next generation “2 Series” gyratory cone crusher

Sandvik Mobile Crushers and Screens roll out the latest upgrade in their “2 Series” product offering with the launch of the new QS332 cone crusher.

Versatility and cross-compatibility with Sandvik’s unique modular hanging screen

Sandvik’s modular double deck hanging screen can process two screened products and recirculate any oversize back into the crusher. Some of the unique benefits of this new modular hanging screen include; its ability to be adapted quickly for operation in open or closed circuit configurations.
