Wheeled cone units

UH312 Cone crusher

Equipment
Sandvik CH440 cone, SA1854 four deck screen
Max. feed size
215 mm (9 in.)
Capacity
Up to 300 mtph (330 stph)

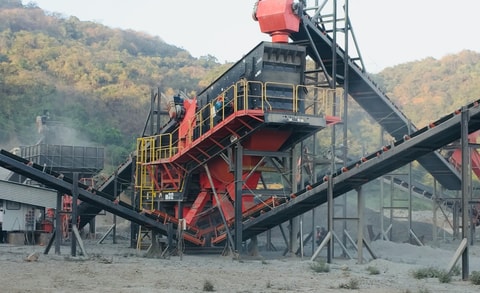

UH312 wheeled cone crusher

Sandvik UH312 is a compact secondary/tertiary crusher fully assembled on a single trailer frame. The versatile Sandvik SA1854 four deck circular motion screen and advanced Sandvik CH440 hydrocone crusher make it an excellent choice for secondary crushing, and the compact design an ideal fit for mobile applications.

Features

Product data

Equipment
Sandvik CH440 cone, SA1854 four deck screen
Max. feed size
215 mm (9 in.)
Capacity
Up to 300 mtph (330 stph)
Power
276 kW (369 hp)
Transport length
12.3 m (40.3 ft)
Transport width
2.8 m (9.2 ft)
Transport height
4.7 m (15.3 ft)
Weight
38,840 kg (85,627 lb)

Please note all weights and dimensions are for standard units only.

Additional product information

  • UH312

    High-capacity operation and high reduction efficiency are hallmarks of this robust, reliable wheeled unit. Powered by a 249.5 kW (334 hp) engine, Sandvik UH312 wheeled crusher offers the flexibility to handle a variety of applications. The unit is capable of producing up to four different products. Operators can choose from various crushing chambers and throws, and the ability to feed the cone crusher via three different paths.

    User-friendly advantages are built in to maximize operator efficiency, including quick set-up times, hydraulically adjustable settings, and a ladder for handy ground access. And safety is always top of mind, with features such as safety guards over the crusher drives, and multiple strategically-located emergency stop buttons. Rugged steel plate construction provides long-lasting durability, and convenient service and maintenance access makes it easy to keep your Sandvik UH312 wheeled unit in peak operating condition.

    Featuring the new SA1854 four deck vibrating screen for increased screening accuracy and efficiency, this model has been designed to offer high-end productivity processing 1- 4 products at a low cost-per-tonne.

    Also available in the wheeled cone range is Sandvik UH311UH316UH412 and US316.

  • Additional advantages

    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Our wheeled cone units

UH412 wheeled cone crusher
Wheeled cone units

UH412 Cone crusher

Equipment
Sandvik CH440 cone, SA2164 four deck screen
Max. feed size
215 mm (9 in.)
Capacity
Up to 300 mtph (330 stph)
UH412 Cone crusher
Wheeled cone units

UH316 Cone crusher

Equipment
Sandvik CH430 cone, SA1853 triple deck screen
Max. feed size
185 mm (7 in.)
Capacity
Up to 250 mtph
UH316 Cone crusher
UH311 wheeled cone crusher
Wheeled cone units

UH311 Cone crusher

Equipment
Sandvik CH430 cone, SA1854 four deck screen
Max. feed size
185 mm (7 in.)
Capacity
Up to 200 mtph (220 stph)
UH311 Cone crusher
US316 cone crusher
Wheeled cone units

US316 Cone crusher

Equipment
Sandvik CS430 cone, SA1853 triple deck screen
Max. feed size
360 mm (14 in.)
Capacity
Up to 325 mtph (358 stph)
US316 Cone crusher
