Wheeled cone heavy units

UH320E Cone crusher

Sandvik CH430 cone, SF1843 screen
Max. feed size
185 mm (7 in.)
Up to 200 mtph (220 stph)

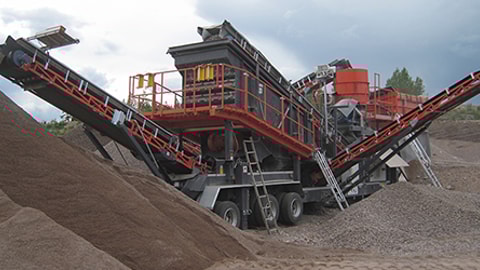

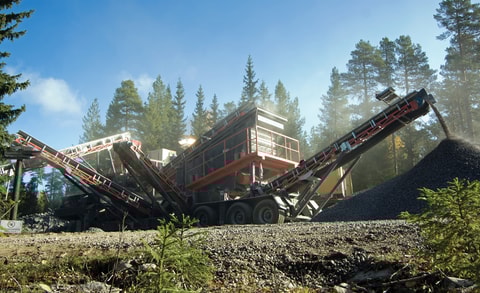

Sandvik UH320E is an integrated mobile cone crusher and triple deck screener all combined on one wheeled chassis. Designed to operate in open or closed circuit, or single stage in natural sand and gravel operations, it offers you superb flexibility, capable of producing three calibrated fractions.


Product data

Sandvik CH430 cone, SF1843 screen
No. of products
Max. feed size
185 mm (7 in.)
Up to 200 mtph (220 stph)
Transport length
17.8 m (58.4 ft)
Transport width
3.0 m (9.8 ft)
Transport height
4.5 m (14.8 ft)
47,500 kg (104,400 lb)

Please note all weights and dimensions are for standard units only.
Former Name: RC3800 Wheeled unit.

Additional product information

  • UH320E

    Sandvik UH320E is powered by an electric motor making it environmentally friendly and cost effective. The unit also comes fitted with many features throughout for safe and easy operation. Sensors are fitted at key locations to ensure trouble-free operation and radio remote control comes fitted as standard.

    It incorporates many onboard process options to help you fine tune the end product, like the ASRi (Automatic Setting Regulation) system. This enables you to ensure that the machine is consistently running at optimum levels, as well as automating much of the process.

    There are two variants to optimize quality and capacity in different applications.

    Also available within this wheeled range of equipment is Sandvik UV320E and UF320E.

  • Additional advantages

    • Quick set-up time and easy to transport as one unit
    • Easily accessible for service and maintenance
    • Security+  extended warranty & service package for higher uptime and peace of mind.
