Wheeled impact crushers

UV320E VSI impact crusher

Sandvik CV217 VSI
Max. feed size
50 mm (2 in.)
Up to 200 mtph (220 stph)

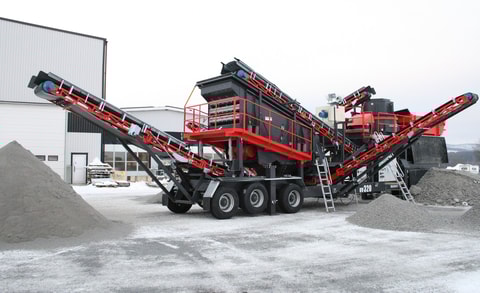

UV320E wheeled VSI

Sandvik UV320E is an integrated vertical shaft impact (VSI) crusher and three-way split screener on a wheeled chassis. Powered by electricity we have designed this unit for the production of premium shaped aggregates for the concrete and asphalt industries at a low cost per tonne.


Product data

Sandvik CV217 VSI
No. of products
3 + Natural Fines
Max. feed size
50 mm (2 in.)
Up to 200 mtph (220 stph)
Transport length
18.6 m (58.1 ft)
Transport width
3.0 m (9.8 ft)
Transport height
4.5 m (14.8 ft)
46,300 kg (101,800 lb*)

Please note all weights and dimensions are for standard units only.
Former Name: RC107 Wheeled unit.

Additional Product Information

  • UV320E

    Sandvik UV320E combines our state of the art Sandvik CV217 crusher and our three-way split screening technology for maximum mobility and flexibility of operation. Sandvik VSI technology, renowned for high capacity and cubical shape at a consistent quality, this unit is highly efficient and produces the highest quality materials.

    Sandvik's extensive experience and testing has led to a machine that is highly productive, easy to set up and operate. In order to maximize uptime, the machine has been designed with easy access for servicing and maintenance as a priority.

    There are two variants available to optimize quality and capacity in different applications.

    Also available within this wheeled range are Sandvik UH320E and UF320E models.

  • Additional advantages

    • Designed for maximum efficiency, high quality end product and low operating cost
    • Security+  extended warranty & service package for higher uptime and peace of mind.
