Heavy duty small range breakers

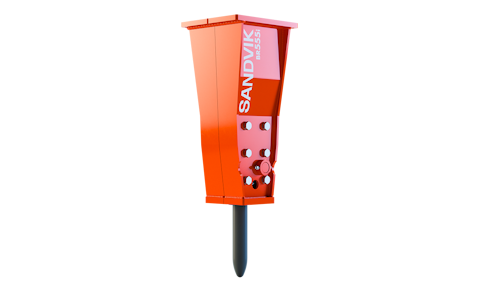

BR555i Heavy Duty Small hydraulic breaker

Working weight
320 kg (705 lb)
Tool diameter
72.00 mm (2.83 in)
Mini excavator weight, allowed range
3.2 - 8.0 t (7,100.0 - 17,600.0 lb)

Sandvik BR555i Heavy Duty Small hydraulic breaker has been designed for the toughest of applications. The breaker can be utilized in a number or different duties, thanks to its ability to be mounted on a wide range of carriers.

Features

Product data

Working weight
320 kg (705 lb)
Impact rate (frequency)
600 - 1,800 bpm
Operating pressure
90 - 140 bar (1,305 - 2,030 psi)
Tool diameter
72.00 mm (2.83 in)
Oil flow range
35.0 - 90.0 l/min (9.2 - 23.8 gal/min)
Mini excavator weight, allowed range
3.2 - 8.0 t (7,100.0 - 17,600.0 lb)
Skid steer weight, allowed range
1.9 - 5.3 t (4,200.0 - 11,700.0 lb)

Additional product information

  • BR555i Heavy Duty Small breaker

    The durable, low-maintenance design of the BR555i Heavy Duty Small breaker features a membrane-type accumulator to ensure constant maximum impact power and eliminate the need for recharging in the field. This enables consistently high productivity while maintaining stability and safety.
    The field-replaceable tool bushing and other proven, intelligent features keep maintenance downtime to a minimum and productivity high even in the most challenging environments.

  • Additional advantages

    • No-tie-rods design enables fast and easy servicing without special tooling required
    • Quick-change tool bushing makes maintenance easy, fast and safe
    • Broad carrier range gives the breaker real versatility

Our heavy duty small range breakers

Heavy duty small range breakers

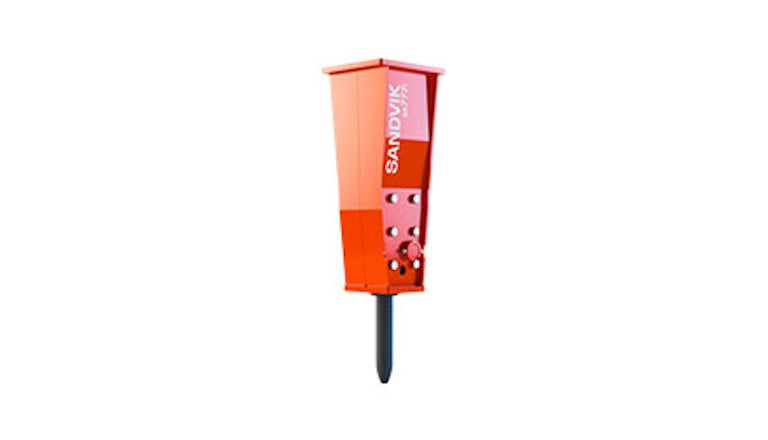

BR777i Heavy Duty Small hydraulic breaker

BR777i Heavy Duty Small hydraulic breaker
Heavy duty small range breakers

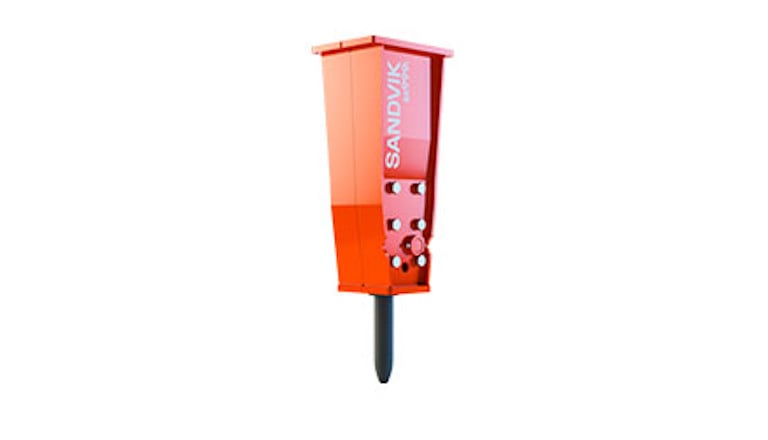

BR999i Heavy Duty Small hydraulic breaker
