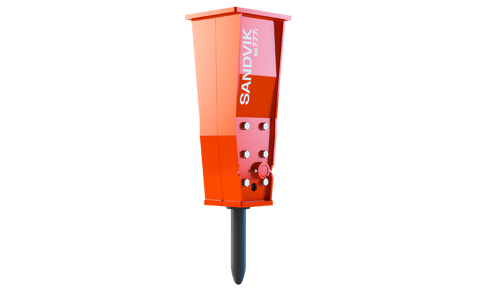

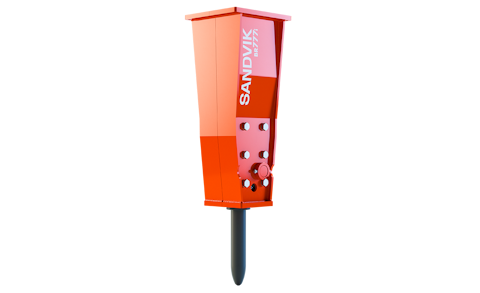

BR777i Heavy Duty Small hydraulic breaker
Sandvik BR777i Heavy Duty Small hydraulic breaker has been designed for the toughest of applications. The breaker can be utilized in a number or different duties, thanks to its ability to be mounted on a wide range of carriers.
Need to know more?
The durable, low-maintenance design of the BR777i Heavy Duty Small breaker features a membrane-type accumulator to ensure constant maximum impact power and eliminate the need for recharging in the field. This enables consistently high productivity while maintaining stability and safety.
The field-replaceable tool bushing and other proven, intelligent features keep maintenance downtime to a minimum and productivity high even in the most challenging environments.
Advantages:
- Factory-installed RD3 remote monitoring device for superior fleet management
- CBE (Constant Blow Energy) gives consistent performance
- No-tie-rods design enables fast and easy servicing without special tooling required
- Membrane-type accumulator ensures constant maximum impact power and removes the need for time-consuming recharging
- Quick-change tool bushing makes maintenance easy, fast and safe
- Heavy-duty housing withstands high temperature and extreme wear
- Broad carrier range gives the breaker real versatility
| Technical data | |
|---|---|
| Working weight, kg (lb) | 415 (910) |
| Impact rate, bpm | 500 - 1700 |
| Operating pressure, bar (psi) | 90 - 140 (1,305 - 2,030) |
| Tool diameter, mm (in.)70 | 80 (3.15) |
| Acceptable oil flow, l/min (gal/min) | 40 - 120 (10.6 - 31.7) |
| Mini excavator weight, allowed range, t (lb) | 4.3 - 9.5 (9,500 - 20,900) |
| Skid steer weight, allowed range, t (lb) | 2.6 - 6.3 (5,700 - 13,900) |
