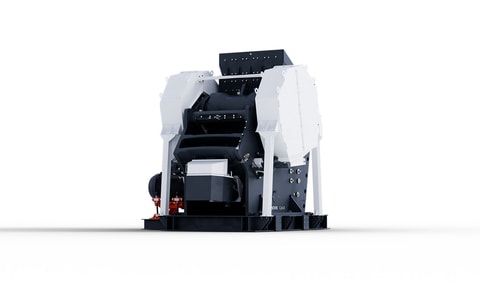

Sandvik CJ615 Single-Toggle Jaw Crusher With Heavy Duty Design

Sandvik CJ615 single-toggle jaw crusher is engineered for even the toughest applications thanks to its heavy-duty design.

Welded frame

ensures equal strength in all directions and excellent durability against shock loads
Deep symmetrical crushing chamber and optimized nip angle

maximizes size reduction and production capacity
Wide intake opening

offers possibility to handle larger feeds

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Brochure - The Sandvik Jaw crushing range

Capacity (by hour): 385 - 1,085 mtph (424 - 1,196 stph)
Feed opening: 1,500 x 1070 mm (59 x 42 in.) mm
Motor power: 200 kW
Weight: 56,500 kg (124,500 lb)
Feed size: 960.000 mm (38.000 in.)
Closed side setting (CSS) range: 115.0 - 300.0 mm (4.5 - 11.8 in)
Jaw plates: CC, ST, HD

This crusher is also available on the following mobile unit: UJ640 Mobile jaw crusher

Former name: JM1511 Jaw crusher

This crusher is also available on the following mobile unit:

UJ640E

Sandvik UJ640E is designed to maintain high levels of productivity in the toughest environments. This mobile tracked jaw crusher is compact, manoeuverable, and versatile, and proven to produce material of the highest quality, at a low cost-per-tonne.

UJ640E Mobile unit

Additional product information

This crusher is characterized by an attention to detail in its design and manufacture, it is an excellent choice when you need high production and low total cost.

Sandvik CJ615 benefits from low jaw plate wearing, reducing the need for maintenance. This reduces downtime, allowing you to benefit from the high productivity levels of the equipment for longer.

There are two different options available, manual and semi-hydraulic, on the setting regulation to suit the different needs by the user, giving you the versatility you need.
