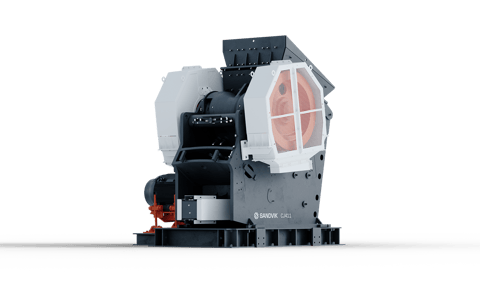

Sandvik CJ411 Single-Toggle Jaw Crusher For High Production

Sandvik CJ411 is a reliable, high performing crusher built to optimize primary crushing applications. The latest CJ411 features hydraulic wedge setting with syncronized retraction arragement, upgraded guarding and clearer role-based user-friendly documentation. It comes with a 3-year standard warranty.

Hydraulic wedge setting with syncronized retraction arrangement

for fast, easy and safe adjustment during operation.

Hydraulic wedge setting with syncronized retraction arrangement

for fast, easy and safe adjustment during operation.

for fast, easy and safe adjustment during operation.
High energy efficiency main motor

ensures an optimal combination of high power, energy efficiency, reduced operational costs and lower carbon footprint.

High energy efficiency main motor

ensures an optimal combination of high power, energy efficiency, reduced operational costs and lower carbon footprint.

ensures an optimal combination of high power, energy efficiency, reduced operational costs and lower carbon footprint.
ACS-j system simplifies monitoring and control of key components

and makes performance and condition monitoring of key metrics simpler through a user-friendly web interface.

ACS-j system simplifies monitoring and control of key components

and makes performance and condition monitoring of key metrics simpler through a user-friendly web interface.

and makes performance and condition monitoring of key metrics simpler through a user-friendly web interface.
Welded frame

ensures equal strength in all directions and excellent durability against shock loads

Welded frame

ensures equal strength in all directions and excellent durability against shock loads

ensures equal strength in all directions and excellent durability against shock loads
Compact plug-and-play solution

means you’ll be up and running in the shortest possible time with the smallest possible footprint, while ensuring reliable productivity and availability.

Compact plug-and-play solution

means you’ll be up and running in the shortest possible time with the smallest possible footprint, while ensuring reliable productivity and availability.

means you’ll be up and running in the shortest possible time with the smallest possible footprint, while ensuring reliable productivity and availability.
Safety-engineered guarding

ensures more coverage and complete equipment and personnel protection.

Safety-engineered guarding

ensures more coverage and complete equipment and personnel protection.

ensures more coverage and complete equipment and personnel protection.

Product data

Technical specifications

Capacity (by hour)	150 - 565 mtph (165 - 625 stph)
Feed opening	1,045 x 840 mm (41 x 33 in.) mm
Motor power	110 kW (150 hp)
Weight	24,050 kg (53,000 lb)
Feed size	760.000 mm (30.000 in.)
Closed side setting (CSS) range	70.0 - 225.0 mm (2.8 - 9.0 in)
Jaw plates	HD / CC / C / WT

Capacity (by hour)	150 - 565 mtph (165 - 625 stph)
Feed opening	1,045 x 840 mm (41 x 33 in.) mm
Motor power	110 kW (150 hp)
Weight	24,050 kg (53,000 lb)
Feed size	760.000 mm (30.000 in.)
Closed side setting (CSS) range	70.0 - 225.0 mm (2.8 - 9.0 in)
Jaw plates	HD / CC / C / WT

This crusher is also available on the following mobile unit: UJ310 Wheeled unit jaw crusher

Former name: JM1108 Jaw crusher

This crusher is also available on the following mobile unit:

UJ310

Sandvik UJ310 offers a primary crushing solution fully assembled on a single trailer frame and mounted on a triple axle bogie. It features the reliable and highly productive Sandvik CJ411 jaw crusher and comes complete with feeder motors, starters, frequency drive and an electrical control panel to make it user friendly and productive.

UJ310 Mobile unit

Additional product information

This crusher is characterized by an attention to detail in its design and manufacture, it is an excellent choice when you need high production and low total cost.

Sandvik CJ411 benefits from high capacity as well as high reduction rates. It's also designed to be stable, durable and benefits from low jaw plate wear, which minimizes the need for maintenance and downtime.
