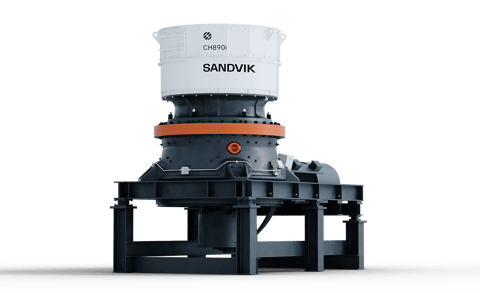

CH890i

Sandvik CH890i and is a technologically advanced, high-capacity cone crushers designed for crushing applications in mines or large sized quarries.

Hydroset™ system

provides safety and setting-adjustment functions
Automation & Connectivity System (ACS)

automatically adapts the crusher to varying feed conditions ensuring maximum 24/7 performance
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance
The electric dump valve system

protects your crusher against unwanted pressure peaks greatly improving its performance and reliability

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Brochure - 800i connected cone crusher with ACS-c 5

Nominal capacity: 275 - 1,837 mtph (303 - 2,025 stph)
Max. feed size: 428 mm (17 in.)
Motor power: 750 kW (1,000 hp)
Closed side setting (CSS) range: 13 - 70 mm (1 - 3 in.)
Eccentric throw range: 24 - 70 mm (1 - 3 in.)
Mantles (inner liners): A, B, HC, EF, OB, FF
Concaves (outer liners): EC, C, MC, M, MF, F
No of chambers: 4
Weight: 84,891 kg (187,153 lb)
Automation (ACS): Included
Electric dump valve: Included
Lubrication tank: Included
Tank instrument monitoring system: Included
Offline lubrication filtration unit: Included

Several different crushing chambers are available for the CH890i as standard. The crusher can easily be matched to changes in production by selecting the right crushing chamber and eccentric throw.

The chambers available are:

EC = Extra coarse
C = Coarse
MC = Medium coarse
M = Medium
MF = Medium fine
F = Fine

Additional product information

Sandvik CH890i and is a technologically advanced, high-capacity cone crushers designed for crushing applications in mines or large sized quarries. It has a hydraulically supported main shaft which is supported at both ends.

Sandvik CH890i is dedicated for high-capacity secondary crushing thanks to its 750 kW motor, delivering higher power and more crushing force at maximum throw.

It brings you a revolution in intelligent crushing. SAM by Sandvik gives you complete 24/7 access to data generated by your connected Sandvik crusher fleet. Make decisions based on facts, and clearly see areas where you can improve uptime and productivity. Get access to manuals and an e-commerce platform to easily and efficiently buy and reorder wear and spare parts. SAM by Sandvik lets you track & trace parts online to make maintenance planning simpler. No other crushers are better connected.

The CH890i comes with the new generation Automation and Connectivity System (ACS) as standard. The system continuously monitors and optimizes crusher performance and controls the complete lubrication system, increasing uptime and reliability. It can automatically adjust crusher settings to compensate for crushing chamber wear– ensuring consistent product size. Hydroset™ and the advanced dump valve automatically provide overload protection to let tramp iron or other uncrushable material pass through.
