Stationary cone crushers 800i-series


Nominal capacity
208 - 1,370 mtph (229 - 1,510 stph)
Max. feed size
350 mm (14 in.)
Motor power
600 kW (805 hp)

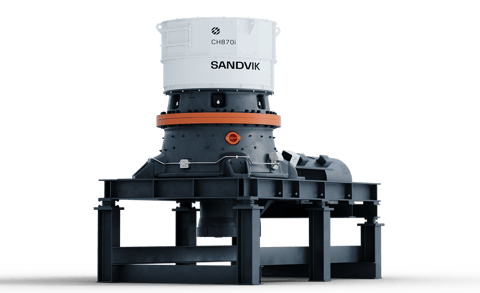

Sandvik CH870i is a technologically advanced, high-capacity cone crusher designed for crushing applications in mines or large sized quarries.

Product data

Nominal capacity
208 - 1,370 mtph (229 - 1,510 stph)
Max. feed size
350 mm (14 in.)
Motor power
600 kW (805 hp)
Closed side setting (CSS) range
10 - 70 mm (0 - 3 in.)
Eccentric throw range
32 - 80 mm (1 - 3 in.)
Mantles (inner liners)
A, B, EF, OB, FF
Concaves (outer liners)
EC, C, MC, M, MF, F, EF, HR*
No of chambers
72,028 kg (158,795 lb)
Automation (ACS)
Electric dump valve
Lubrication tank
Tank instrument monitoring system
Offline lubrication filtration unit

*HR=High Reduction, Only available through aftermarket

Several different crushing chambers are available for the CH870i as standard. The crusher can easily be matched to changes in production by selecting the right crushing chamber and eccentric throw.

The chambers available are:

  • EC = Extra coarse
  • C = Coarse
  • MC = Medium coarse
  • M = Medium
  • MF = Medium fine
  • F = Fine
  • EF = Extra fine

Additional product information

The improved over-pressure system with dedicated air channel inlets helps protect your crusher from dust.

When used in secondary crushing applications, the Sandvik CH870i delivers high capacity thanks to its 600 kW motor delivering higher power and more crushing force at maximum throw. It is also suitable for high reduction tertiary/pebble applications. The increased crushing force facilitates higher size reduction, resulting in a finer product size and less circulating load in closed circuits.

It brings you a revolution in intelligent crushing. SAM by Sandvik gives you complete 24/7 access to data generated by your connected Sandvik crusher fleet. Make decisions based on facts, and clearly see areas where you can improve uptime and productivity. Get access to manuals and an e-commerce platform to easily and efficiently buy and reorder wear and spare parts. SAM by Sandvik lets you track & trace parts online to make maintenance planning simpler. No other crushers are better connected.

The CH870i comes with the new generation Automation and Connectivity System (ACS) as standard. The system continuously monitors and optimizes crusher performance and controls the complete lubrication system, increasing uptime and reliability. It can automatically adjust crusher settings to compensate for crushing chamber wear– ensuring consistent product size. Hydroset™ and the advanced dump valve automatically provide overload protection to let tramp iron or other uncrushable material pass through.
