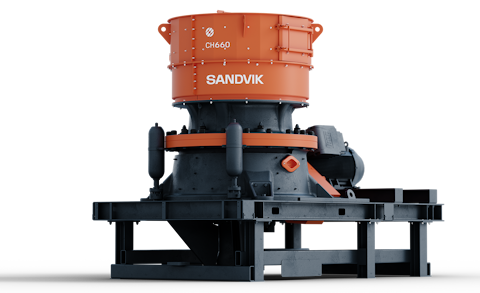

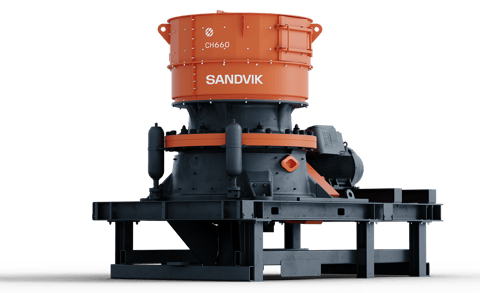

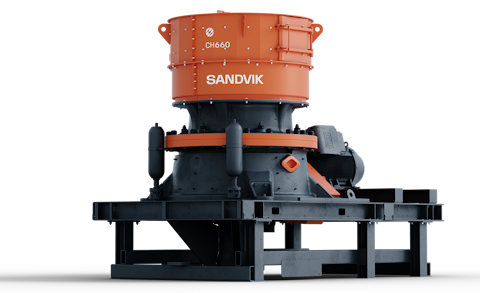

Sandvik CH660 Cone Crusher For Pebble-Crushing Applications

Sandvik CH660 is an advanced design with a small footprint, and has a high capacity in relation to its size.

Hydroset™ system

provides safety and setting-adjustment functions
ASRi™

automatically adapts crusher to feed conditions
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance
Easy to maintain and reliable

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Nominal capacity: 116 - 646 mtph (128 - 712 stph)
Max. feed size: 321.0 mm (12.6 in.)
Motor power: 315 kW (422 hp)
Closed side setting (CSS) range: 10.0 - 51.0 mm (0.4 - 2.0 in.)
Eccentric throw range: 18.0 - 50.0 mm (0.7 - 1.9 in.)
Mantles (inner liners): A, B, HC, EF, HC, D, FF
Concaves (outer liners): EC, CX, C, MC, M, MF, F, EF, HR
No of chambers: 8
Weight: 29,335 kg (64,670 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

Former name: H6800 Cone crusher

Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw.

The chambers available are:

EC = Extra coarse
CX = Coarse xtra
C = Coarse
MC = Medium coarse
M = Medium
MF = Medium fine
I =
F = Fine
EF = Extra fine
EEF = Extra extra fine

This crusher is also available on the following mobile unit:

UH640E

Sandvik UH640E is designed to be a flexible, highly productive secondary or tertiary cone crusher. This unique solution is capable of producing finished sized products due to the integral product screen and closed circuit operation

UH640E Mobile unit

Additional product information

This cone crusher has a hydraulically supported main shaft that is supported at both ends.

Sandvik CH660 has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary application or a high-reduction tertiary or pebble-crushing application. Achieve high performance by selecting the Sandvik crushing chamber that's right for your application.

The equipment is designed for easy maintenance, meaning you can fully optimise your uptime, and maintain high levels of productivity.
