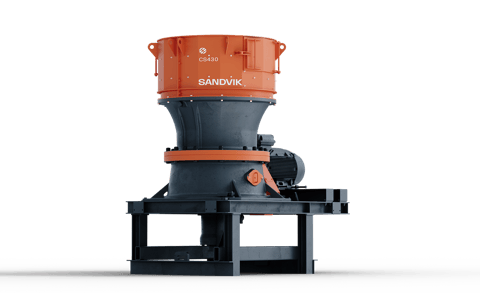

Sandvik CS430 Cone Crusher For Secondary Crushing Applications

Sandvik CS430 cone crusher has a hydraulically supported main shaft that is supported at both ends.

Hydroset™ system

provides safety and setting-adjustment functions
ASRi™

automatically adapts crusher to feed conditions
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Nominal capacity: 99 - 298 mtph (109 - 328 stph)
Max. feed size: 400.0 mm (15.6 in.)
Motor power: 132 kW (177 hp)
Closed side setting (CSS) range: 24.0 - 54.0 mm (0.9 - 2.1 in.)
Eccentric throw range: 16.0 - 30.0 mm (0.6 - 1.2 in.)
Mantles (inner liners): A, B
Concaves (outer liners): MC, C, EC
No of chambers: 3
Weight: 13,098 kg (28,872 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

Former name: S3800 Cone crusher

Three standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by selection of crushing chamber and eccentric throw:

EC = Extra coarse
C = Coarse
MC = Medium coarse

This crusher is also available on the following mobile units:

QS332

Sandvik QS332 is a compact, robust mobile secondary cone crushing solution designed for versatility and ease of operation. Fitted with Sandvik CS430 "S" type gyratory cone crusher, it is capable of accepting large feed sizes whilst achieving high production capacities.

QS332 Mobile unit

US316

Sandvik US316 is a compact secondary and tertiary crusher fully assembled on a single trailer frame. This equipment is designed to provide complete versatility with an efficient SA1853 triple deck screen and a highly productive Hydrocone crusher.

US316 Mobile unit

US373

The Sandvik US373 wheeled cone crusher is engineered to provide your operations with flexibility, sustainability, durability and class-leading productivity. Following the success of the UH373, the new Sandvik US373 offers the same modular design as the UH373, but now also features the highly reliable and powerful Sandvik CS430 cone crusher with a 180 HP drive.

US373 Mobile unit

Additional product information

The crusher has a robust design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

Sandvik CS430 cone crusher is characterized by the large intake capability and the high capacity in relation to size, proving to be a versatile and efficient option for many applications.

The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels, ensuring it consistently produces excellent quality output.

The unibody mainframe means the equipment is strong and durable, which means less maintenance in the long term. Sandvik CS430 can stay productive and efficient for longer, which allows you to increase your return on investment.
