Wheeled units USA

UK373 Cone crusher

Sandvik CH440 cone, 3 deck 6' x 20' horizontal screen
Max. feed size
9 in. (215 mm )
Up to 527 stph (475 mtph)

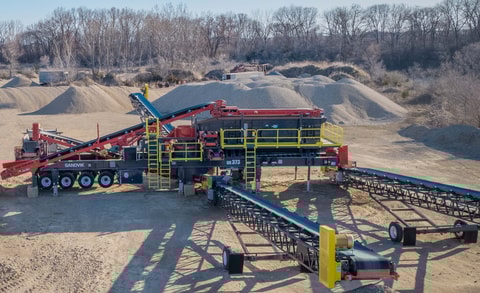

Electrically-driven and fully assembled on a quad axle trailer frame, the UK373 offers a closed-circuit solution equipped with the Sandvik CH440 cone crusher and a three deck 6' x 20' heavy duty screen to ensure outstanding efficiency, high productivity and reliability.


Product Data

Sandvik CH440 cone, 3 deck 6' x 20' horizontal screen
Max. feed size
9 in. (215 mm )
Up to 527 stph (475 mtph)
428 hp (314 kW)
Transport length
71.1 ft (21.9 m)
Transport width
12.6 ft (3.8 m)
Transport height
14.5 ft (4.4 m)
153,000 lb (62,500 kg)

Please note all weights and dimensions are for standard units only.

Additional product information

  • UK373

    The UK373 benefits from user friendly features such as hydraulically adjustable settings, and a choice of different crushing chambers and throws. This enables fine tuning to match your required specification and maximum output.
    All features on this machine have been designed with your needs in mind to give you high productivity and increased operator safety. Safety guards, emergency stop buttons and spacious maintenance platforms provide excellent access for service and maintenance.

  • Additional advantages

    • Low cost per tonne due to electric operation
    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
