Wheeled units USA

UH373 Cone crusher

Sandvik CH440 cone
Max. feed size
9 in. (215 mm )
Up to 335 stph (250 mtph)

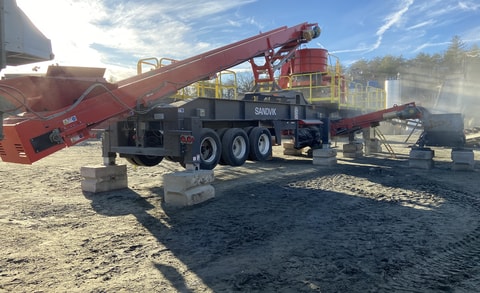

UH373 wheeled cone crusher

Driven by quality and built for rock, the Sandvik UH373 is an open circuit Sandvik cone crusher designed to offer high-end productivity, processing at a low cost-per-tonne.


Product Data

Sandvik CH440 cone
Max. feed size
9 in. (215 mm )
Up to 335 stph (250 mtph)
335 hp (250 kW)
Transport length
64.6 ft (19.7 m)
Transport width
11.1 ft (3.6 m)
Transport height
13.1 ft (4.3 m)
100,000 lb (45,359 kg)

Please note all weights and dimensions are for standard units only.

Additional product information

  • UH373

    Designed with enhanced safety features and powered by electricity, this unit offers a sustainable rock processing solution.
    All features on this machine have been designed with your needs in mind to give you high productivity and increased operator safety. Safety guards, emergency stop buttons and spacious maintenance platforms provide excellent access for service and maintenance.

  • Additional advantages

    • Low cost per tonne due to electric operation
    • Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
