Hybrid tracked offering

QA442e Doublescreen

Equipment
Sandvik 2 deck Doublescreen
Screen size
6 x 1.5 m (20 x 5 ft)
Capacity
Up to 600 mtph (661 stph )

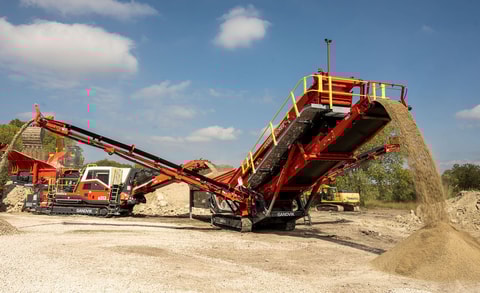

Sandvik QA442e is a highly productive 6 x 1.5 m (20 x 5 ft) double deck screen that comes equipped with our world-class, heavy-duty Doublescreen system and hybrid drive system.

Features

Product data

Equipment
Sandvik 2 deck Doublescreen
Screen size
6 x 1.5 m (20 x 5 ft)
Capacity
Up to 600 mtph (661 stph )
Engine
C4.4 97 kW (132 hp)*
Transport length
18.4 m (60.3 ft)
Transport width
3.2 m (10.5 ft)
Transport height
3.6 m (11.6 ft)
Weight
34,000 kg (74,957 lb)

* Please refer to technical specification sheet for alternative engine options.

Additional product information

  • QA442e

    Sandvik has designed this machine to suit the needs of larger operators. It incorporates a large feed hopper, two independently angled screen boxes and extended product conveyors that offer massive stockpiling capabilities.

    The primary screen works as a fines extractor, whilst the secondary screen operates as a grader. Both primary and secondary screening angles can be adjusted relative to each other, offering exceptional flexibility and massive throughput.

    All of this is carried on a durable chassis that is designed to withstand the rigors of a bigger quarry or recycling applications. Operator safety is ensured with hydraulically folding walkways, and the equipment has many user-friendly features included as standard.

    Other models within this range of screens include Sandvik QA452e.

  • Lower your operating cost and your carbon footprint

    In our drive towards a more sustainable future and helping our customers to lower their operating costs, we have developed a hybrid drive option for our Q-Range of screens and scalpers. This electric plug-in solution allows you to choose between operating in electric-hydraulic or diesel-hydraulic mode, giving you the flexibility to select the energy source which best suits your requirements. This will enable you to lower your operating cost as well as your carbon footprint.

    Available on Sandvik QA442 and QA452 models within our screening range and QE342, QE442 and QE442 Free Flow in our scalper offering.

  • Additional advantages

    • Designed for optimum fuel economy to lower your operating costs
    • Hybrid “e” drive option with electric plug-in lets you choose your most economical and efficient energy source
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

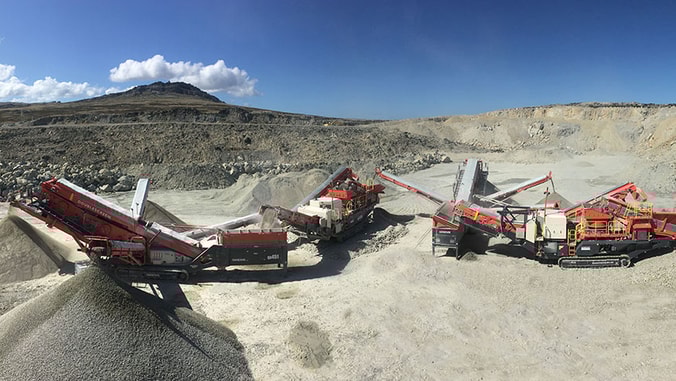

Falkland Islands quarry enlists Sandvik Mobiles to meet thriving demand

Sandvik Mobiles introduce new WX-Range of screen media combining durability & high accuracy

Now Mobile crushing and screening customers of Sandvik no longer have to choose between the high accuracy of wire media and the durability of rubber screens. The Sandvik WX-Range of rubber media is now available for its tracked range of mobile equipment.

Our tracked screens

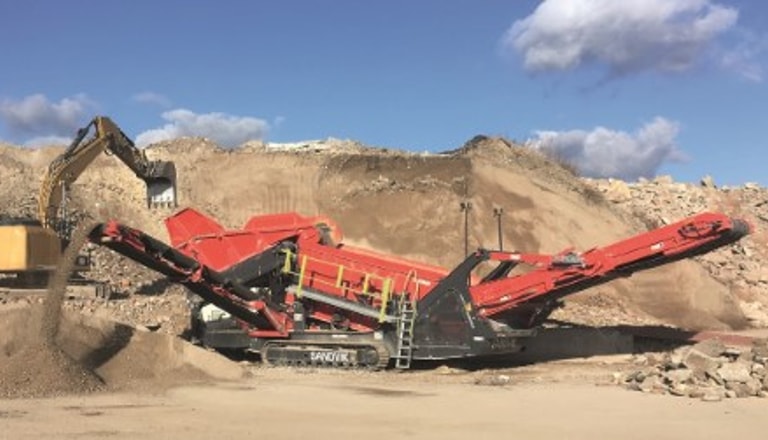

Sandvik QE342 Mobile scalper
Hybrid tracked offering

QE342e Scalper

Equipment
Sandvik heavy duty 2 deck screen
Screen size
4.7 x 1.45 m (16 x 5 ft)
Capacity
Up to 500 mtph (551 stph)
QE342e Scalper
Hybrid tracked offering

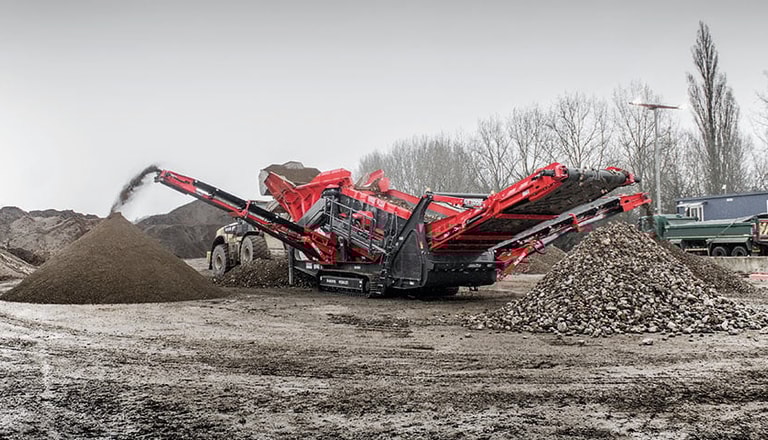

QE442e Free Flow scalper

Equipment
Sandvik heavy duty 2 deck free flow screen
Screen size
5.4 x 1.75 m (18 x 6 ft)
Capacity
Up to 400 mtph (441 stph)
QE442e Free Flow scalper
Hybrid tracked offering

QA452e Doublescreen

Equipment
Sandvik 3 deck Doublescreen
Screen size
6 x 1.5 m (20 x 5 ft)
Capacity
Up to 600 mtph (661 stph)
QA452e Doublescreen
Hybrid tracked offering

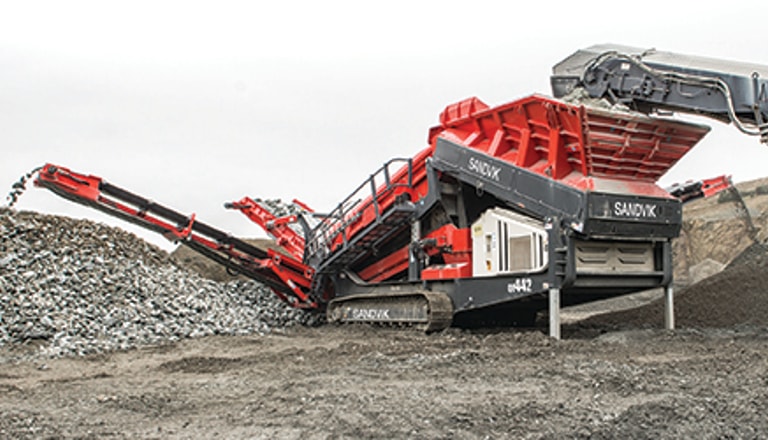

QE442e Scalper

Equipment
Sandvik heavy duty 2 deck screen
Screen size
5.5 x 1.75 m (18 x 6 ft)
Capacity
Up to 900 mtph (992 stph)
QE442e Scalper
