QJ241 Jaw crusher

Equipment
Sandvik C10 jaw crusher
Feed opening
1,000 x 650 mm (40 x 26 in.)
Max. feed size
520 mm (21 in.)
Capacity
225 mtph (248 stph)

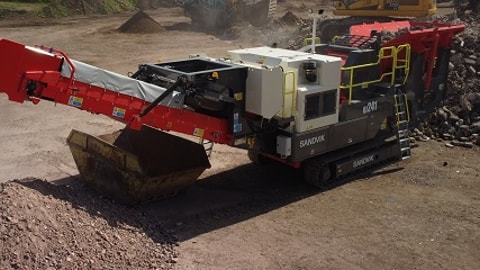

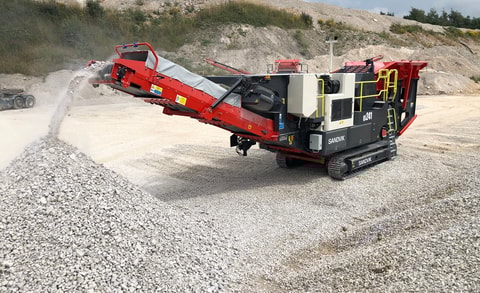

Sandvik QJ241 mobile jaw crusher is the most compact machine in the series and is ideal for smaller operations. Like the rest of the range, it delivers maximum productivity with low operating costs, and has been designed with the user in mind.

Features

Product data

Mobiles tracked brochure

qj241-specification-sheet-english.pdf

Equipment
Sandvik C10 jaw crusher
Feed opening
1,000 x 650 mm (40 x 26 in.)
Max. feed size
520 mm (21 in.)
Capacity
225 mtph (248 stph)
Engine
C7.1 168 kW (225 hp)
Transport length
13.9 m (45.7 ft)
Transport width
2.5 m (8.3 ft)
Transport height
3.2 m (10.6 ft)
Weight
33,500 kg (73,855 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

Former Names: Extec C-10, Extec C-10+, QJ240 Jaw Crusher

Additional product information

  • QJ241

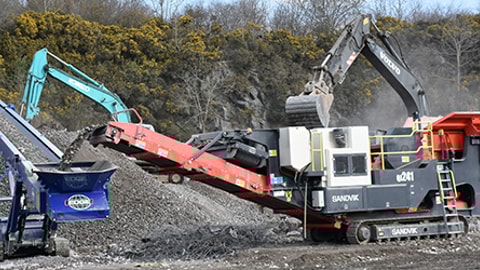

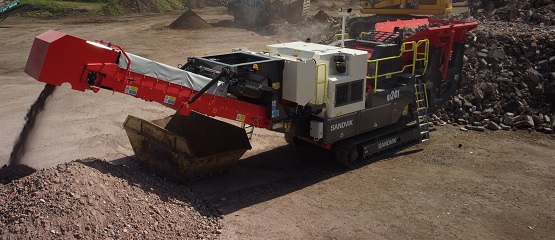

    Sandvik QJ241 utilizes a substantial 1,000 x 650mm (40 x 26 in.) jaw, powered by a 168kW (225hp) engine. This means that while the machine is compact, it retains a high level of power and productivity. The jaw itself is hydraulically adjustable, allowing you to ensure your output is always at its optimum level.

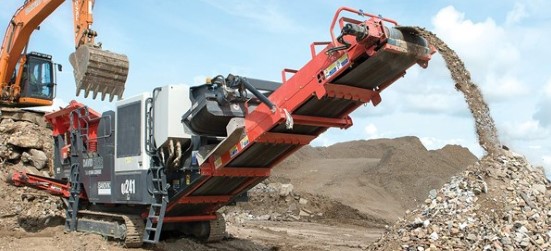

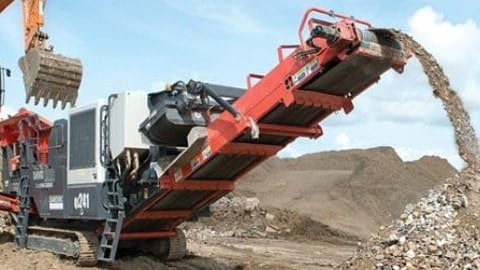

    This mobile jaw crusher is the ideal solution for recycling sites, yet equally productive for a number of other applications. It's a mobile, versatile machine built using Sandvik's extensive research, experience, and customer feedback.

    Sandvik QJ241 also provides a greater discharge height and increased clearance for rebar discharge, due to the raise and lower facility on the main conveyor.

    Other models within this range include Sandvik QJ341 and QJ341+ tracked jaw crushers.

  • Additional Advantages
    • Fitted with Optitooth™ jaw plates for extended life, increased throughput and reduced fuel consumption
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
    • Security+ extended warranty & service package for higher uptime and peace of mind. 

Case stories

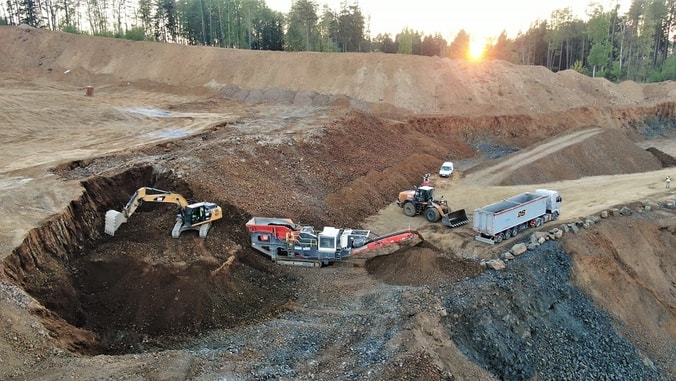

Sandvik mobile equipment gives DS Holding’s materials a second lease on life

Czech company DS Holding purchased a Sandvik QJ341 jaw crusher and QE241 scalper to increase their operational capacity. Looking to invest in mobile equipment to move around sites to recycle construction materials and process aggregates in quarries, they have been delighted with the products from Sandvik and the service they have received from their local distributor, Sandrock s.r.o.
Read more about Sandvik mobile equipment gives DS Holding’s materials a second lease on life

Increased productivity & longer wear life with Sandvik Optitooth™ offering

Sandvik Mobiles have created a number of complementary ready-to-order maintenance kits which include Optitooth™ jaw plates and our NEW Optitooth™ side plates for the Sandvik QJ241, QJ341 & QJ341+ jaw crushers.
Read more about Increased productivity & longer wear life with Sandvik Optitooth™ offering
QJ241_RyeGroup_HVO

Rye Group operate Sandvik QJ241 with HVO as part of their Sustainability Standard

Rye Group have recently invested in a Sandvik QJ241 mobile jaw crusher, and in line with the rest of their fleet, are operating with HVO rather than diesel. Rye Group were the first SME demolition company in the UK to transition their entire fleet to HVO as a key initiative in their sustainability drive.
Read more about Rye Group operate Sandvik QJ241 with HVO as part of their Sustainability Standard

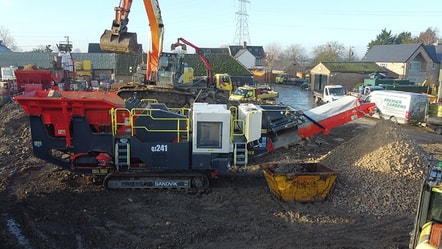

Mead Construction put their trust in Sandvik once again

Local family company Mead Construction have recently taken delivery of a QJ241 mobile jaw crusher to upgrade their fleet of equipment in Cambridgeshire, UK. With over 35 years’ experience in the industry, they know their business and need reliable equipment which is built to deliver.
Read more about Mead Construction put their trust in Sandvik once again

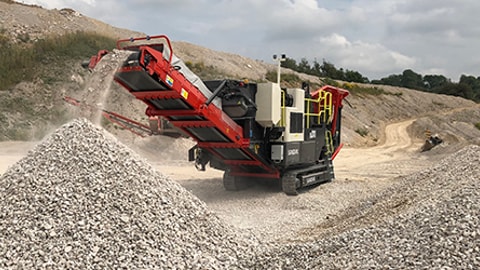

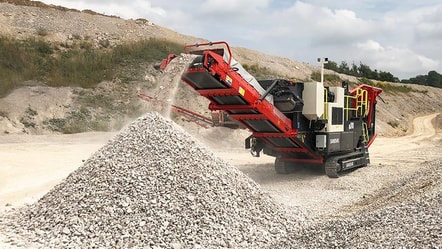

More reasons to smile with a Sandvik QJ241 jaw crusher

Longstanding customer Ben Bennett Jr Ltd took delivery of their fifth Sandvik mobile crushing and screening unit for their quarrying operation in Derbyshire in July. These units are used to crush limestone to produce high quality grades of calcium carbonate for a variety of applications, including the pharmaceutical industry, and is commonly used in the manufacture of toothpaste.
Read more about More reasons to smile with a Sandvik QJ241 jaw crusher
