Side-mounted range breakers

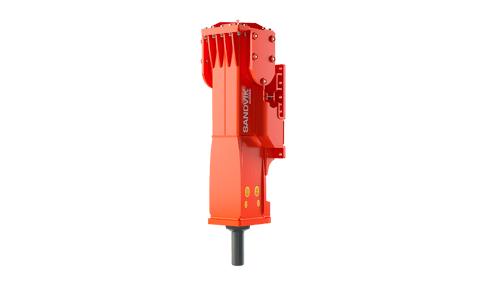

BR3288i Side-mounted hydraulic breaker
- Working weight
- 3,550 kg (7,826 lb)
- Tool diameter
- 142.00 mm (5.59 in)
- Carrier weight, allowed range
- 26 - 42 t (57,300 - 92,600 lb)
Sandvik BR3288i Side-mounted hydraulic breaker has been designed using a revolutionary operating principle that combines stroke length, blow energy and Sandvik’s idle blow protector, allowing the breaker to be modified to match individual applications and improving hydraulic efficiency and safety.
Features
-
FBE (Fixed Blow Energy)
the built-in pressure control valve maintains hydraulic pressure levels to ensure that every blow delivers the maximum power, yielding optimum productivity in all applications.
-
High pressure membrane accumulator
eliminates nitrogen leakages, ensuring constant maximum impact power – higher uptime and productivity with lower operation costs. Maintenance is easy and there’s no need for recharging in field
-
Easy IBP (Idle Blow Protection)
adjustment in the field ensures the hammer cannot be operated until pressure is placed on tool. This eliminates tie rod stress, reduces oil overheating and protects against premature failures
-
Rotatable and easily field replaceable lower tool bushing
reduces maintenance costs
Product data
- Working weight
- 3,550 kg (7,826 lb)
- Impact rate, long stroke
- 370.00000 - 630.00000 bpm
- Impact rate, short stroke
- 460 - 740 bpm
- Operating pressure
- 150 - 160 bar (2,175 - 2,320 psi)
- Tool diameter
- 142.00 mm (5.59 in)
- Oil flow range
- 160.0 - 250.0 l/min (42.3 - 66.0 gal/min)
- Carrier weight, allowed range
- 26 - 42 t (57,300 - 92,600 lb)
Additional product information
-
BR3288i Side-mounted
Manufactured with a heavy-duty housing for optimum wear resistance and designed to be reliable and easily maintained, allowing you to maximize productivity and uptime. The BR3288i Side-mounted breaker delivers tremendous impact energy and high blow frequency for an exceptional power-to-weight ratio.
-
Additional advantages
- Stroke selector allows to match breaker to material and application for optimized operating
- VIDAT (Vibration Dampened) Tie rods for better reliability and longer working life
- Ramlube I & II greasing kits for longer component life (Optional)
- Sandvik’s patented Ramvalve to protect against premature failure
- Robust, wear-resistant plates for optimum breaker protection and noise reduction
- Sandvik's patented tool sealing structure protects the power cell against debris and extends service life significantly
