Wheeled jaw crushers
UJ516E Jaw crusher
- Equipment
- Sandvik CJ412 jaw
- Feed opening
- 1200 x 830 mm (47 x 33 in.)
- Max. feed size
- 750 mm (30 in.)
- Capacity
- Up to 790 mtph (871 stph)

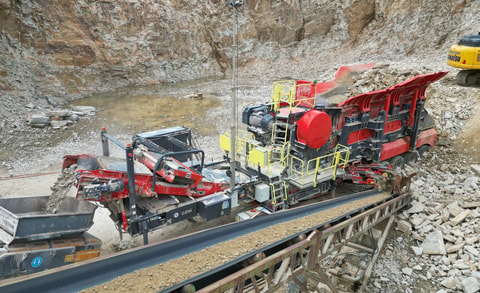

The Sandvik UJ516E is a next-generation, fully electric wheeled jaw crusher designed to meet the demands of modern quarrying and mining operations. Engineered for sustainability, productivity, and rapid deployment, the UJ516E sets a new benchmark in eco-efficient rock processing.
Features
-
Electric drives
provide optimum running conditions at a lower cost
Electric drives
provide optimum running conditions at a lower cost
provide optimum running conditions at a lower cost
-
Feed hopper has a hydraulic self-locking mechanism
for quick and easy set up
Feed hopper has a hydraulic self-locking mechanism
for quick and easy set up
for quick and easy set up
-
Hydraulic machine set up, with onboard power pack
provides quick, easy and safe set up
Hydraulic machine set up, with onboard power pack
provides quick, easy and safe set up
provides quick, easy and safe set up
-
A crusher bypass chute
allows for onsite flexibility, maximizes capacities and sellable products
A crusher bypass chute
allows for onsite flexibility, maximizes capacities and sellable products
allows for onsite flexibility, maximizes capacities and sellable products
-
Motorized pulleys on the main and natural fines conveyors
extend oil changes to 50,000 hours
Motorized pulleys on the main and natural fines conveyors
extend oil changes to 50,000 hours
extend oil changes to 50,000 hours
-
Large chamber opening of 43" x 33" / 1200 x 830 mm
allows unrestricted material flow into the chamber ensuring continuous production
Large chamber opening of 43" x 33" / 1200 x 830 mm
allows unrestricted material flow into the chamber ensuring continuous production
allows unrestricted material flow into the chamber ensuring continuous production
-
CSS hydraulic adjust
ensures quick production changes and limits unnecessary downtime
CSS hydraulic adjust
ensures quick production changes and limits unnecessary downtime
ensures quick production changes and limits unnecessary downtime
-
Natural fines conveyor with large discharge height
offers greater stockpile capabilities
Natural fines conveyor with large discharge height
offers greater stockpile capabilities
offers greater stockpile capabilities
-
Level sensors at the jaw, main conveyor and natural fines conveyor
ensure the feeder control is based on actual stockpiling and jaw level
Level sensors at the jaw, main conveyor and natural fines conveyor
ensure the feeder control is based on actual stockpiling and jaw level
ensure the feeder control is based on actual stockpiling and jaw level
-
Service platforms on both sides of the crusher
allow for safe and stable access to the unit
Service platforms on both sides of the crusher
allow for safe and stable access to the unit
allow for safe and stable access to the unit
-
Extended warranty
· with 2 year or 3,000 hours warranty as standard
Extended warranty
· with 2 year or 3,000 hours warranty as standard
· with 2 year or 3,000 hours warranty as standard
Product data
Technical specifications
| Equipment |
Sandvik
CJ412 jaw
|
|---|---|
| Feed opening |
1200 x 830 mm (47 x 33 in.)
|
| Max. feed size |
750
mm
(30 in.)
|
| Capacity |
Up to
790
mtph
(871 stph)
|
| Power |
149
kW
(200 hp)
|
| Equipment |
Sandvik
CJ412 jaw
|
|---|---|
| Feed opening |
1200 x 830 mm (47 x 33 in.)
|
| Max. feed size |
750
mm
(30 in.)
|
| Capacity |
Up to
790
mtph
(871 stph)
|
| Power |
149
kW
(200 hp)
|
| Transport length |
18.2
m
(59.9 ft)
|
| Transport width |
3.3
m
(10.8 ft)
|
| Transport height |
4.1
m
(13.6 ft)
|
| Weight |
42,350
kg
(93,366 lb)
|
These units are non CE-certified.
Please note all weights and dimensions are for standard units only.
Additional product information
UJ516E
The UJ516E wheeled electric jaw crusher makes the shift to eco-efficient rock processing.
Benefit from a reduction in fuel costs, a decrease in carbon emissions, and a quieter operation, enhancing workplace safety and comfort. With its robust design and advanced electric drive system, the UJ516E delivers optimal performance.
With unparalleled sustainability, productivity, and reliability, this state-of-the-art unit is fully assembled on a single trailer frame and is mounted on a quadruple axle bogie, ensuring ease of transport and operational readiness.

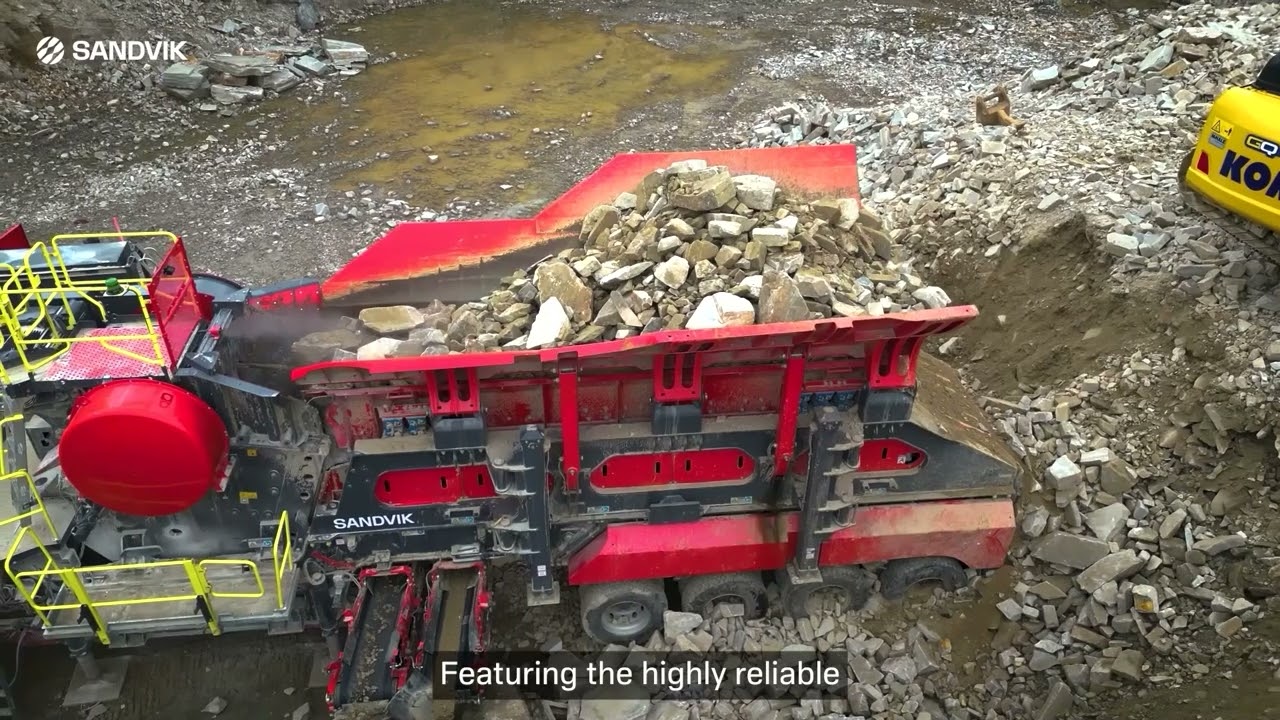

At its core lies the Sandvik CJ412 jaw crusher, renowned for its exceptional reliability.
The UJ516E is engineered for high performance with minimal downtime, and is equipped with essential components including feeder motors, starters, and a frequency drive, all controlled by user-friendly systems.
Also available in the wheeled range of jaw crushing units are Sandvik UJ210 , UJ300, UJ310 and UJ313 models.
Our wheeled jaw units
UJ310 Jaw crusher
- Equipment
- Sandvik CJ411 jaw, SW1253 H feeder
- Feed opening
- 1045 x 840 mm (41 x 33 in.)
- Max. feed size
- 750 mm (30 in.)
- Capacity
- Up to 325 mtph (358 stph)
UJ300 Jaw crusher
- Equipment
- Sandvik CJ211 jaw, SW1043H feeder
- Feed opening
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (342 stph)
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
UJ210 Jaw crusher
- Equipment
- Sandvik CJ409 jaw, SW1043H feeder
- Feed opening
- 895 x 660 mm (23.6 in.)
- Max. feed size
- 600 mm (24 in.)
- Capacity
- Up to 235 mtph (359 stph)
UJ313 Jaw crusher
- Equipment
- Sandvik CJ211 jaw
- Feed opening
- Max. feed size
- 630 mm (26 in.)
- Capacity
- Up to 310 mtph (340 stph)
- Feed opening
- 1100 x 700 mm (43 x 28 in.)
