Stationary HSI impact crushers
CI712
- Max. feed size
- 300 mm (12 in.)
- Capacity
- 150 tph (165 stph)
- Motor power
- 185 kW (250 hp)
- CSS range
- 10.0 - 50.0 mm (0.4 - 2.0 in.)

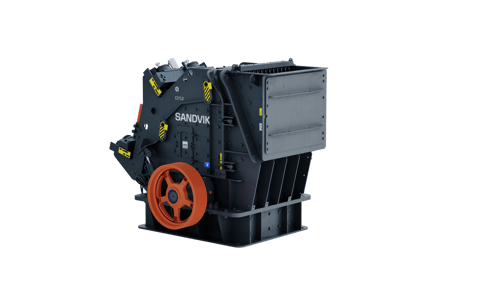

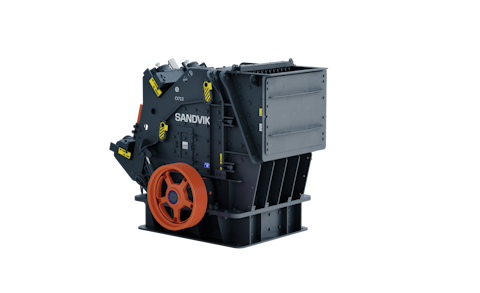

Sandvik CI712 HSI crusher is for secondary crushing stage of non-abrasive rocks.
-
High reduction ratios
-
Energy efficient overload protection
-
Crusher blockage elimination
-
Hydraulic curtain adjustment and frame opening
-
Easy and safe maintenance
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Product data
- Max. feed size
- 300 mm (12 in.)
- Capacity
- 150 tph (165 stph)
- Motor power
- 185 kW (250 hp)
- CSS range
- 10.0 - 50.0 mm (0.4 - 2.0 in.)
- Length
- 2.84 m (112.00 in.)
- Width
- 2.00 m (79.00 in.)
- Height
- 2.29 m (90.00 in.)
- Weight
- 11,184 kg (25,656 lb)
Additional product information
The crusher can be used for a wide range of applications, and is capable of crushing a variety of materials including re-enforced concrete. The working principle of Sandvik CI712 HSI encourages material to break along its natural cleavage planes, and it produces excellent, stress-free, cubical-shape products.
It is of the open rotor type, and the advanced design is equipped with a number of user-friendly features.
Typical applications could be making a Type 1 aggregate 0 – 40 mm (0 – 1 15/16 in.), or Railway Ballast 40 – 70 mm (1 15/16 – 2 ¾ in.), or recycling / crushing of re-enforced concrete and asphalt. With Sandvik CI712 HSI there is low capital outlay, low maintenance, fewer screens and conveyors, enabling a quicker return on investment.
-
SAM by Sandvik
SAM by Sandvik is your digital assistant that gives you the insights, support and performance-enhancing information you need to increase your crushing and screening productivity – all in one place
-
The knowledge hub
Over the last 150 years, we've learned a thing or two about crushing and screening. As innovators and experts in the field, we have a deep understanding of technical and mechanical factors, but there’s more to it than that. Find out at our knowledge hub for crushing and screening.
Our range stationary HSI impact crushers
CI721
- Max. feed size
- 900 mm (35 in.)
- Capacity
- 200 - 400 tph (220 - 441 stph)
- Motor power
- 250 kW (335 hp)
CI732
- Max. feed size
- 350 mm (14 in.)
- Capacity
- 250 - 575 tph (276 - 634 stph)
- Motor power
- 440 kW (590 hp)
CI722
- Max. feed size
- 350 mm (14 in.)
- Capacity
- 150 - 250 tph (165 - 276 stph)
- Motor power
- 250 kW (335 hp)
CI731
- Max. feed size
- 1,000 mm (39 in.)
- Capacity
- 400 - 700 tph (441 - 772 stph)
- Motor power
- 440 kW (590 hp)
CI711
- Max. feed size
- 600 mm (24 in.)
- Capacity
- 200 tph (220 stph)
- Motor power
- 185 kW (250 hp)
