Tracked screens

QA335 Doublescreen

Equipment
Sandvik 2 deck Doublescreen
Screen size
4 x 1.5 m (13 x 5 ft)
Capacity
Up to 400 mtph (441 stph )

Sandvik QA335 mobile Doublescreen is a highly productive machine that comes equipped with our world-class, heavy-duty Doublescreen system.

Features

Product data

Equipment
Sandvik 2 deck Doublescreen
Screen size
4 x 1.5 m (13 x 5 ft)
Capacity
Up to 400 mtph (441 stph )
Engine
C2.8 / C3.4 55 kW (74 hp)*
Transport length
15.4 m (50.3 ft)
Transport width
3.0 m (9.1 ft)
Transport height
3.4 m (11.2 ft)
Weight
26,520 kg (58,467 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

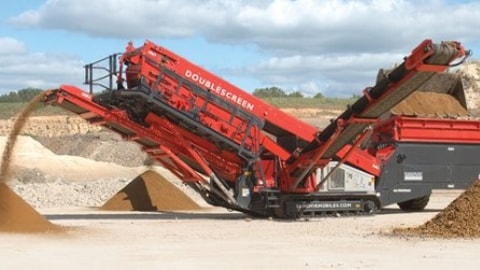

Sandvik QA335 Mobile Doublescreen

Additional product information

  • QA335

    Sandvik QA335 is designed to target the specific needs of your recycling, mining and contracting projects. Featuring Sandvik Doublescreen system, this innovative technology has two high velocity, angle adjustable screens, where both the primary and secondary screening angles can be adjusted to optimize screening performance and accuracy. With two independent double deck screens you get a single machine capable of performing two screening processes.

    It comes equipped with a range of user-friendly features aimed at improving the overall operator experience, with sequential start up, radio remote control and two-speed tracks as standard. We have also fitted it with a complete wrap-around walkway to provide you with a safe working platform for service and maintenance.

    To maximize your return on investment, Sandvik QA335 has been manufactured to run on low operating costs, with a real focus on optimum fuel economy. This also reduces the environmental impact of the equipment.

    Also available within our screener range are Sandvik QA442 and QA452.

  • Additional advantages

    • Full radio remote control and two speed tracking for safe and efficient movement
    • Designed for optimum fuel economy and low operating costs
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

Wheeled and tracked duo prove just the job for Makapa Corporation in the Philippines

Makapa Corporation in the Philippines are operating a UJ300 wheeled jaw crushing unit together with a tracked QA335 Doublescreen. Processing river gravel to produce material for their own construction company, they have been delighted with the performance and production capacity of this mobile duo from Sandvik.
