Tracked scalpers

QE342 Scalper

Equipment
Sandvik heavy duty 2 deck screen
Screen size
4.7 x 1.45 m (16 x 5 ft)
Capacity
500 mtph (551 stph )

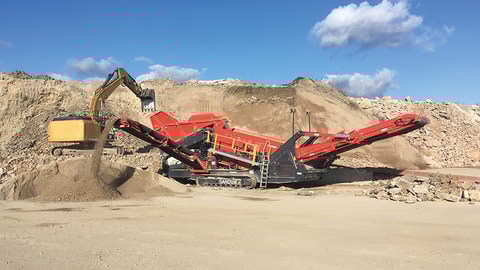

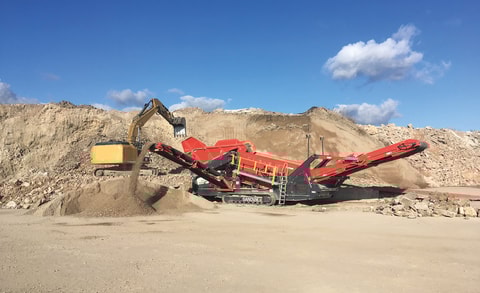

QE342 scalper

Sandvik QE342 is a heavy duty scalper with class leading open scalping area capable of delivering enormous rates of production. Designed to meet the requirements of operators who need a high performing, versatile unit that is easy to operate and transport.

Features

Product data

Equipment
Sandvik heavy duty 2 deck screen
Screen size
4.7 x 1.45 m (16 x 5 ft)
Capacity
500 mtph (551 stph )
Engine
C4.4 98 kW (132 hp)
Transport length
14.8 m (48.8 ft)
Transport width
3.0 m (9.1 ft)
Transport height
3.4 m (11.2 ft)
Weight
28,567 kg (62,979 lb )

Please note all weights and dimensions are for standard units only.

Additional product information

  • QE342

    Its design and attributes means that the production of even the most-hard wearing of materials is facilitated through a wear resistant steel apron feeder, with massive stockpiling capability and over-wide conveyors that maximize delivery.

    Its purpose designed crusher style chassis has been developed specifically to accommodate the latest more powerful and efficient engine power packs. Enhancing its versatility, the Sandvik QE342 incorporates a wear resistant rigid hopper which is compatible for 2-way or 3-way split configurations, as well as having the ability to interchange side conveyors thereby demonstrating the ultimate flexibility of the unit. The screen box jack up facility allows easier access to the bottom deck for maintenance and screen media changes.

    Other models within this range include Sandvik QE141QE241 and QE442.

  • Additional advantages

    • Spacious power pack with improved service access, hydraulics and lighting
    • Compatible for 2-way or 3-way split configurations
    • Hybrid “e” drive option with electric plug-in lets you choose your most economical and efficient energy source
    • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
    • Security+  extended warranty & service package for higher uptime and peace of mind.

Case stories

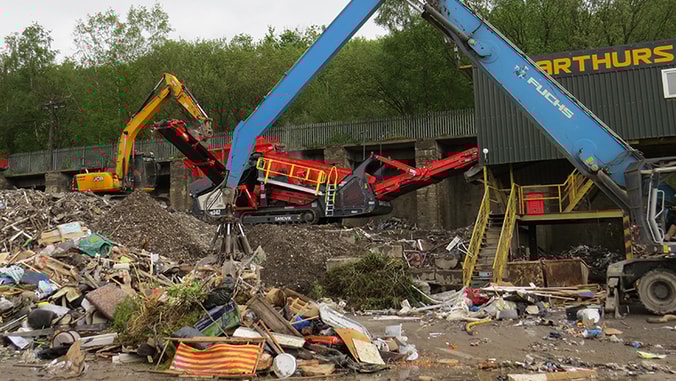

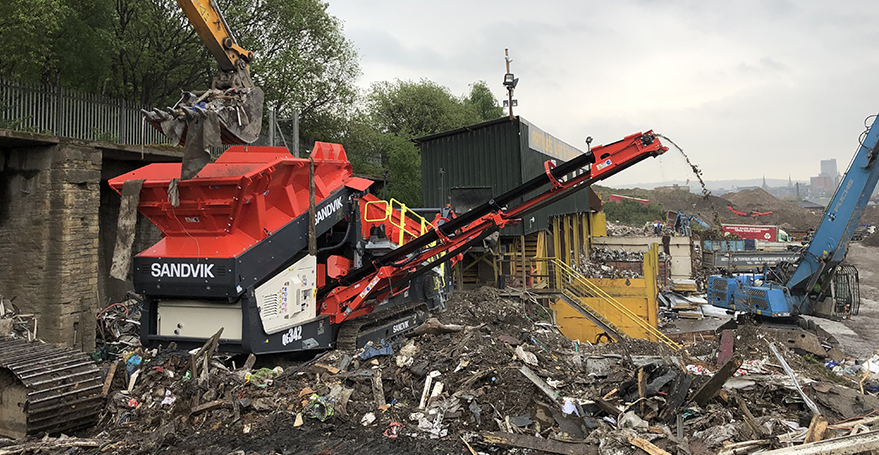

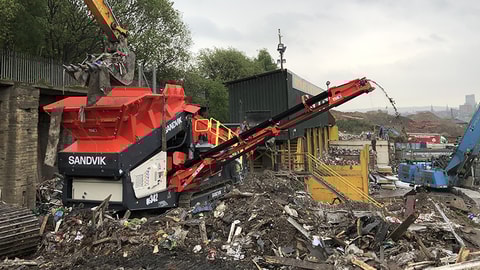

Arthur’s Skips expands their fleet with a Sandvik QE342 mobile scalper

Arthur’s Skips in Sheffield have been a loyal customer of Sandvik for a number of years. They have recently invested in the latest mobile scalper for their recycling operation due to the reliability and back-up provided.

Sandvik Mobiles introduce new WX-Range of screen media combining durability & high accuracy

Now Mobile crushing and screening customers of Sandvik no longer have to choose between the high accuracy of wire media and the durability of rubber screens. The Sandvik WX-Range of rubber media is now available for its tracked range of mobile equipment.

Our tracked scalpers

Tracked scalpers

QE141 Scalper

Equipment
3.7 x 2.4 m hopper
Capacity
400 mtph (441 stph )
QE141 Scalper
Tracked scalpers

QE442 Free Flow scalper

Equipment
Sandvik heavy duty 2 deck Free Flow screen
Screen size
5.5 x 1.75 m (18 x 6 ft)
Capacity
900 mtph (992 stph )
QE442 Free Flow scalper
Tracked scalpers

QE442 Scalper

Equipment
Sandvik heavy duty 2 deck screen
Screen size
5.5 x 1.75 m (18 x 6 ft)
Capacity
900 mtph (992 stph )
QE442 Scalper
QE241 scalper
Tracked scalpers

QE241 Scalper

Equipment
Sandvik heavy duty 2 deck screen
Screen size
3.35 x 1.24 (11 x 4 ft)
Capacity
350 mtph (386 stph )
QE241 Scalper
