Tracked cone crushers U-Range

US440E Cone crusher

Sandvik CS440 cone
Max. feed size
500 mm (20 in.)
Up to 600 mtph (660 stph)

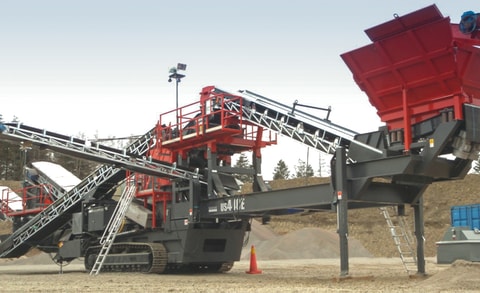

Sandvik US440E mobile cone crusher is a highly efficient electrically powered, track-mounted complete process unit with a cone crusher and screen onboard. Designed to meet the demands of quarry operators, mining companies or contractors working with highly abrasive materials, it is the ideal solution for your secondary and tertiary applications.


Product data

Sandvik CS440 cone
Max. feed size
500 mm (20 in.)
Up to 600 mtph (660 stph)
TAD 1642 GE Diesel Generator 670 kVA
Transport length Part 1
16.3 m (53.5 ft)
Transport length Part 2
11.9 m (39.0 ft)
Transport length Part 3
3.1 m (10.0 ft)
Transport width Part 1
3.5 m (11.5 ft)
Transport width Part 2
3.1 m (10.0 ft)
Transport width Part 3
3.1 ft (10.0 ft)
Weight Part 1
61,500.0 kg (135,600.0 lb)
Weight Part 2
13,000.0 kg (28,660.0 lb)
Weight Part 3
7,200.0 kg (15,890.0 lb)

Please note all weights and dimensions are for standard units only.

Additional product information

  • US440E

    Sandvik US440E comes equipped with our high performing Sandvik CS440 cone crusher that will offer you strength and reliability. It is ideal for secondary applications where high size reduction and high capacity crushing is required.

    Sandvik US440E incorporates a dual interlocking and intelligence system that is integrated with ASRi (automatic setting regulation system). This facilitates automated process optimization, as well as predicting maintenance issues, giving you maximum uptime.

    Sandvik offers ultimate flexibility for your project with a wide choice of concaves and eccentric bush settings. We also offer a high capacity product screen and return conveyor for enhanced product quality, to ensure the equipment can meet your demands.

    Sandvik US440E is one of the most versatile tracked machines on the market, and has been designed to suit even the most difficult application requirements.

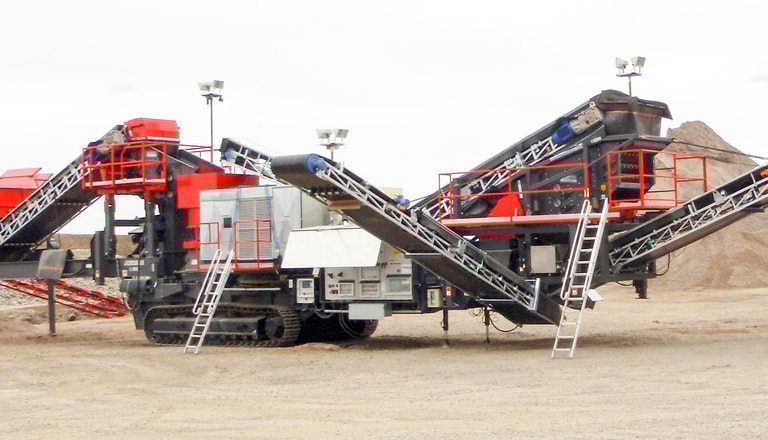

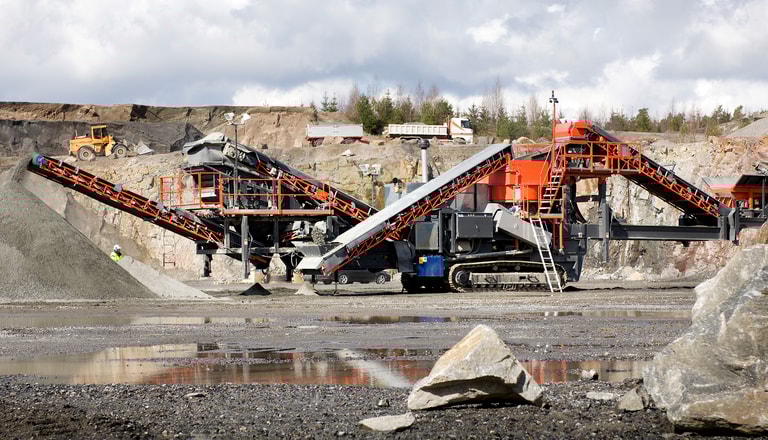

    Other models within this range of cones include Sandvik UH440iUS440i and UH440E.

  • Additional advantages

    • Low emissions and low cost per tonne due to flexible operation through electrical mains or onboard diesel generator
    • Security+  extended warranty & service package for higher uptime and peace of mind. 
