Tracked cone crushers
US440i Cone crusher
- Equipment
- Sandvik CS440 cone
- Max. feed size
- 500 mm (20 in.)
- Capacity
- 344 mtph (379 stph)

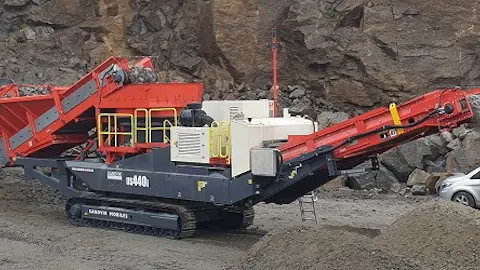

Sandvik US440i is the ultimate heavy duty cone crusher capable of accepting large feed sizes. Designed to suit the specific needs of large mine or quarry operators but can also be used for a much wider range of applications thanks to the versatility of the Sandvik cone.
Features
-
Latest emissions compliant engines
for reduced emissions and reduced fuel consumption due to low operating rpm, direct drive and “intelligent” hydraulics
Latest emissions compliant engines
for reduced emissions and reduced fuel consumption due to low operating rpm, direct drive and “intelligent” hydraulics
for reduced emissions and reduced fuel consumption due to low operating rpm, direct drive and “intelligent” hydraulics
-
Unique Constant Liner Performance
for extended life and performance of chamber liners, minimizing your downtime and costs
Unique Constant Liner Performance
for extended life and performance of chamber liners, minimizing your downtime and costs
for extended life and performance of chamber liners, minimizing your downtime and costs
-
Rubber lined feed hopper
and impact zones for durability
Rubber lined feed hopper
and impact zones for durability
and impact zones for durability
-
Clean and safe production
through dust suppression and pressurised dust protection
Clean and safe production
through dust suppression and pressurised dust protection
through dust suppression and pressurised dust protection
-
Radio remote control
supplied as standard for easy and safe operation
Radio remote control
supplied as standard for easy and safe operation
supplied as standard for easy and safe operation
Product data
- Equipment
- Sandvik CS440 cone
- Max. feed size
- 500 mm (20 in.)
- Capacity
- 344 mtph (379 stph)
- Engine
- D13 315
- Transport length
- 18.8 m (61.7 ft)
- Equipment
- Sandvik CS440 cone
- Max. feed size
- 500 mm (20 in.)
- Capacity
- 344 mtph (379 stph)
- Engine
- D13 315
- Transport length
- 18.8 m (61.7 ft)
- Transport width
- 3.0 m (9.1 ft)
- Transport height
- 3.9 m (12.9 ft)
- Weight
- 53,700 kg (118,388 lb)
Please note all weights and dimensions are for standard units only.
Additional product information
-
US440i

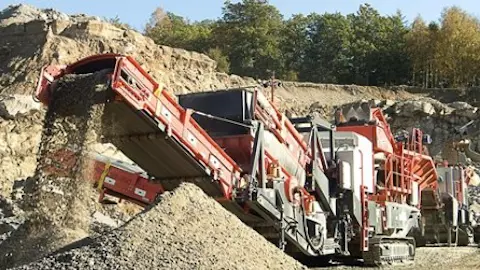

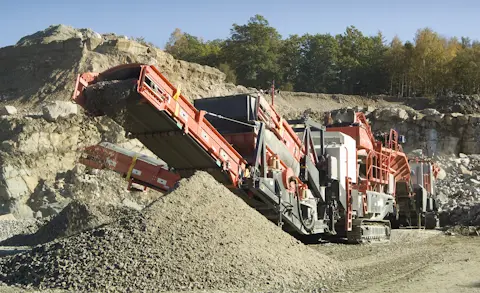

Sandvik US440i is powered by a 315kW (422hp) fuel efficient engine and its robust tracked chassis enables you to benefit from high mobility over the roughest terrain. Our innovative design means it's quick to set up, so you can start to maximize your production straight away.
Sandvik offers a wide choice of mantles and settings, giving you the flexibility to take on a number of different tasks. You can also maximize your primary jaw production by opening the CSS giving maximum throughput and efficiency.
Trouble free and optimal production is ensured through the use of onboard high-level intelligence together with ASRi (Automatic Setting Regulation), which comes as standard. Together, the systems ensure that the machine is running at the highest capacity, whilst minimizing downtime by flagging maintenance issues early.
Other models within this range of cones include Sandvik UH440i, UH440E and US440E.
-
Additional advantages
- Electric refuelling pump as standard for your safety and convenience
- Hanging screen (HS) available for open and closed circuit
- My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
- Security+ extended warranty & service package for higher uptime and peace of mind.
