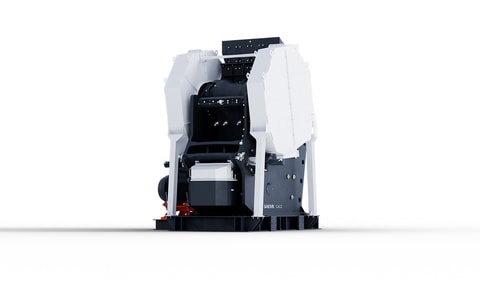

Sandvik CJ613 Single-Toggle Jaw Crusher With A Heavy Duty Design

Sandvik CJ613 is a reliable, high performing crusher built to optimize primary crushing applications. The latest CJ613 now include hydraulic wedge setting with syncronized retraction arragement, upgraded guarding and clearer role-based user-friendly documentation.

Hydraulic wedge setting with syncronized retraction arrangement

for fast, easy and safe adjustment during operation
High energy efficiency main motor

ensures an optimal combination of high power, energy efficiency, reduced operational costs and lower carbon footprint
ACS-j system simplifies monitoring and control of key components

and makes performance and condition monitoring of key metrics simpler through a user-friendly web interface
Welded frame

ensures equal strength in all directions, and excellent durability
Deep symmetrical crushing chamber and optimized nip angle

maximizes size reduction and production capacity
Compact plug-and-play solution

means you’ll be up and running in the shortest possible time with the smallest possible footprint, while ensuring reliable productivity and availability
Safety-engineered guarding

ensures more coverage and complete equipment and personnel protection

Product data

CJ613_CJ615 jaw crushers technical specification

Capacity (by hour): 330 - 960 mtph (364 - 1,058 stph)
Feed opening: 1,300 x 1,130 mm (51 x 45 in.) mm
Motor power: 160 kW (250 hp)
Weight: 48,000 kg (105,900 lb)
Feed size: 1,070.000 mm (42.000 in.)
Closed side setting (CSS) range: 130.0 - 300.0 mm
Jaw plates: C, CC, ST

Former name: JM1312 Jaw crusher

Additional product information

This crusher is characterized by an attention to detail in its design and manufacture, it is an excellent choice when you need high production and low total cost.

The two different options available, manual and semi-hydraulic, on the setting regulation to suit the different needs by the user, giving you the versatility you need. Sandvik CJ613 also benefits from low jaw plate wear, helping you get the optimum levels of productivity out of your equipment for longer periods.
