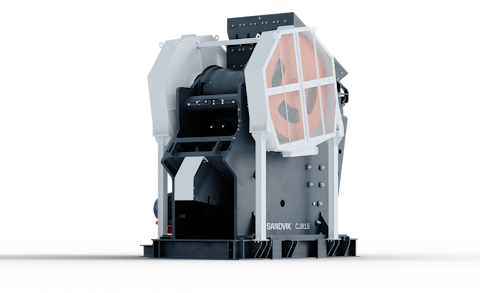

CJ815 Jaw crusher

Sandvik CJ815 single-toggle jaw crusher is engineered for even the toughest applications thanks to its heavy-duty design. Characterized by an attention to detail in its design and manufacture, this machine is an excellent choice when you need high production and low total cost.​

Need to know more?

Email us Request a quote

Sandvik CJ815 benefits from low jaw plate wearing, reducing the need for maintenance. This reduces downtime, allowing you to benefit from the high productivity levels of the equipment for longer.

There are two different options available, manual and semi-hydraulic, on the setting regulation to suit the different needs by the user, giving you the versatility you need.

Advantages

  • Welded frame ensures equal strength in all directions and excellent durability against shock loads
  • Deep symmetrical crushing chamber and optimized nip angle maximizes size reduction and production capacity
  • Wider intake opening offers possibility to handle larger feed
Technical data
Weight 72,500 kg (160,000 lb)
Feed opening 1,500 x 1,300 mm (59 x 51 in.)
Feed size 1,170 mm (46 in.)
Capacity (by hour) 480 - 1,160 mtph
Motor power 200 kW (275 hp)
Closed side setting (CSS) range 150 - 300 mm (5.1 - 5.9 in.)
Jaw plates CC, ST, HD

Former name: JM1513 Jaw crusher

RELIABILITY AND PROTECTION PACKAGE

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
