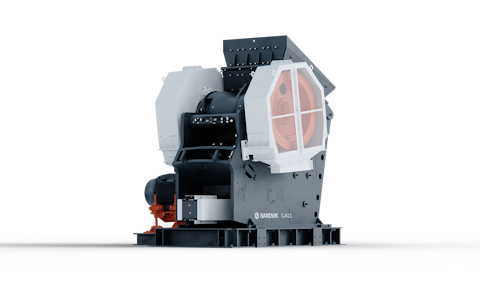

Sandvik CJ411 Single-Toggle Jaw Crusher For High Production

Sandvik CJ411 single-toggle jaw crusher is engineered for even the toughest mining applications thanks to its heavy-duty design. It comes with a 3-year standard warranty.

Welded frame

ensures equal strength in all directions and excellent durability against shock loads

Welded frame

ensures equal strength in all directions and excellent durability against shock loads

ensures equal strength in all directions and excellent durability against shock loads
Deep symmetrical crushing chamber and optimized nip angle

maximizes size reduction and production capacity

Deep symmetrical crushing chamber and optimized nip angle

maximizes size reduction and production capacity

maximizes size reduction and production capacity
Wider intake opening

offers possibility to handle larger feed

Wider intake opening

offers possibility to handle larger feed

offers possibility to handle larger feed

Product data

Brochure

Brochure - The Sandvik Jaw crushing range

Capacity (by hour): 150 - 565 mtph (165 - 623 stph)
Feed opening: 1,045 x 840 mm (41 x 33 in.) mm
Motor power: 110 kW (150 hp)
Weight: 22,800 kg (50,300 lb)
Feed size: 750.000 mm (29.500 in.)
Closed side setting (CSS) range: 75.0 - 225.0 mm (2.9 - 8.8 in)
Jaw plates: CC, C, WT

This crusher is also available on the following mobile unit: UJ310 Wheeled unit jaw crusher

Former name: JM1108 Jaw crusher

This crusher is also available on the following mobile unit:

UJ310

Sandvik UJ310 offers a primary crushing solution fully assembled on a single trailer frame and mounted on a triple axle bogie. It features the reliable and highly productive Sandvik CJ411 jaw crusher and comes complete with feeder motors, starters, frequency drive and an electrical control panel to make it user friendly and productive.

UJ310 Mobile unit

Additional product information

This crusher is characterized by an attention to detail in its design and manufacture, it is an excellent choice when you need high production and low total cost.

Sandvik CJ411 benefits from high capacity as well as high reduction rates. It's also designed to be stable, durable and benefits from low jaw plate wear, which minimizes the need for maintenance and downtime.
