QE342e
Request a quote
Hybrid tracked offering
QE342e Scalper
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 4.7 x 1.45 m (16 x 5 ft)
- Capacity
- Up to 500 mtph (551 stph)

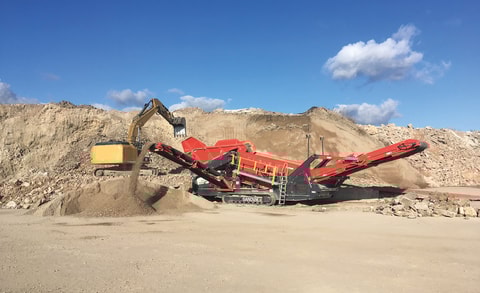

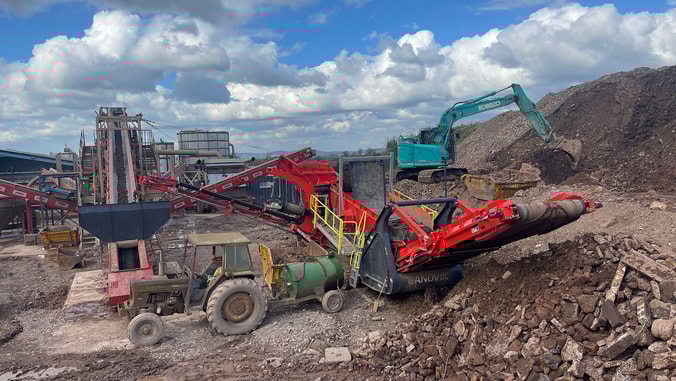

Sandvik QE342e is a heavy duty scalper with class leading open scalping area and fitted with hybrid drive for lower operating costs and reduced carbon footprint.
Product data
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 4.7 x 1.45 m (16 x 5 ft)
- Capacity
- Up to 500 mtph (551 stph)
- Engine
- C4.4 98 kW (132 hp)*
- Transport length
- 14.8 m (48.8 ft)
- Equipment
- Sandvik heavy duty 2 deck screen
- Screen size
- 4.7 x 1.45 m (16 x 5 ft)
- Capacity
- Up to 500 mtph (551 stph)
- Engine
- C4.4 98 kW (132 hp)*
- Transport length
- 14.8 m (48.8 ft)
- Transport width
- 3.0 m (9.1 ft)
- Transport height
- 3.4 m (9.1 ft)
- Weight
- 30,067 kg (66,286 lb)
* Please refer to technical specification sheet for alternative engine options.
Please note all weights and dimensions are for standard units only.
-
Hybrid 'e' drive
with electric plug-in to run in diesel or electric mode for lower operating costs
Hybrid 'e' drive
with electric plug-in to run in diesel or electric mode for lower operating costs
with electric plug-in to run in diesel or electric mode for lower operating costs
-
Heavy duty screen box
with high speed and aggressive throw for optimum throughput
Heavy duty screen box
with high speed and aggressive throw for optimum throughput
with high speed and aggressive throw for optimum throughput
-
Latest generation fuel efficient engine
provides maximum performance & cost efficiency
Latest generation fuel efficient engine
provides maximum performance & cost efficiency
provides maximum performance & cost efficiency
-
User friendly PLC control system
with sequential start-stop for speed and ease of set-up
User friendly PLC control system
with sequential start-stop for speed and ease of set-up
with sequential start-stop for speed and ease of set-up
-
Spacious power pack
with improved service access, hydraulics and lighting
Spacious power pack
with improved service access, hydraulics and lighting
with improved service access, hydraulics and lighting
Additional Product Information
-
QE342e
Its design and attributes means that the production of even the most-hard wearing of materials is facilitated through a wear resistant steel apron feeder, with massive stockpiling capability and over-wide conveyors that maximize delivery.
Its purpose designed crusher style chassis has been developed specifically to accommodate the latest more powerful and efficient engine power packs. Enhancing its versatility, the Sandvik QE342e incorporates a wear resistant rigid hopper which is compatible for 2-way or 3-way split configurations, as well as having the ability to interchange side conveyors thereby demonstrating the ultimate flexibility of the unit. The screen box jack up facility allows easier access to the bottom deck for maintenance and screen media changes.
-
Lower your operating cost and carbon footprint
In our drive towards a more sustainable future and helping our customers to lower their operating costs, we have developed a hybrid drive option for our Q-Range of screens and scalpers. This electric plug-in solution allows you to choose between operating in electric-hydraulic or diesel-hydraulic mode, giving you the flexibility to select the energy source which best suits your requirements. This will enable you to lower your operating cost as well as your carbon footprint.
Available on Sandvik QE442e and QE442e Free Flow in our scalper offering and QA442e and QA452e models within our screening range.
