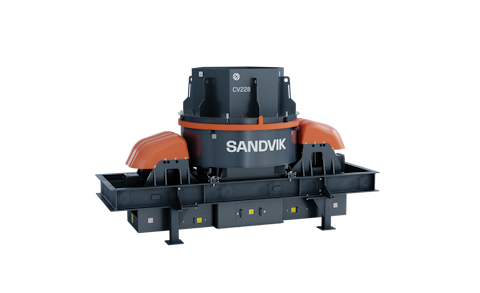

CV228 VSI crusher

Sandvik CV228 VSI impact crusher is manufactured for tertiary and quaternary applications. It comes with a 3-year standard warranty.

Features

Reduced operational cost per tonne,

maximizing your return on investment

Reduced operational cost per tonne,

maximizing your return on investment

maximizing your return on investment
Quick and easy replacement of wear parts,

which keeps the equipment productive with minimal downtime

Quick and easy replacement of wear parts,

which keeps the equipment productive with minimal downtime

which keeps the equipment productive with minimal downtime
Consistent,

easily-controlled product grading

Consistent,

easily-controlled product grading

easily-controlled product grading

Product data

Brochure

Brochure - VSI CV200

Max. feed size: 55.0 mm (2.2 in.)
Capacity: 271 - 444 tph
Motor power: 370 kW
Length: 4.35 m (171.00 in.)
Width: 2.23 m (88.00 in.)
Height: 3.06 m (120.00 in.)
Weight: 14,826 kg (32,686 lb)
Rotor rpm range 50 Hz: 1,401 - 1,677
Rotor rpm range 60 Hz: 1,408 - 1,666

Additional product information

The crucher can handle anything from hard and abrasive rocks to soft, moist and even sticky materials. It's an efficient, versatile piece of equipment, designed to perform well with the most difficult materials.

Sandvik CV228 VSI can be used for a variety of applications, from quality aggregate production for concrete products, road construction and Dam production, to Mining industries where is's used as a pre-grinder to mills resulting in huge power savings.

It gives excellent product shape and are also ideal for crushing minerals, slag, clinker and glass.
