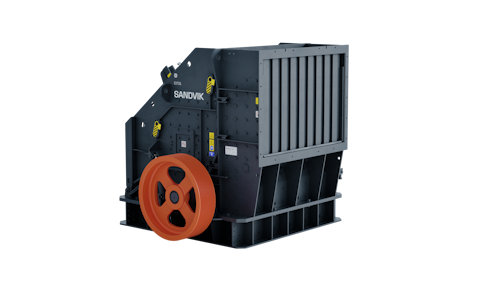

CI731 HSI impact crusher
Sandvik CI731 HSI crusher is for primary crushing stage of non-abrasive rocks. It can be used for a wide range of applications, and is capable of crushing a variety of materials including re-enforced concrete.
The working principle of Sandvik CI731 HSI encourages material to break along its natural cleavage planes, and it produces excellent, stress-free, cubical-shape products.
It is of the open rotor type, and the advanced design is equipped with a number of user-friendly features.
Typical applications could be making a Type 1 aggregate 0 – 40 mm (0 – 1 15/16 in.), or Railway Ballast 40 – 70 mm (1 15/16 – 2 ¾ in.), or recycling / crushing of re-enforced concrete and asphalt. With Sandvik CI731 HSI there is low capital outlay, low maintenance, fewer screens and conveyors, enabling a quicker return on investment.
- High reduction ratios
- Energy efficient overload protection
- Crusher blockage elimination
- Hydraulic curtain adjustment and frame opening
- Easy and safe maintenance
|Feed size||1,000 mm (39 in)|
|Capacity||400 - 700 tph|
|Length||3.21 m (126 in)|
|Width||3.22 m (127 in)|
|Height||2.83 m (111 in)|
|Weight||27,750 kg (61,178 lbs)|
