UK373 Cone crusher
- Equipment
- Sandvik CH440 cone, 3 deck 6' x 20' horizontal screen
- Max. feed size
- 9 in. (215 mm )
- Capacity
- Up to 527 stph (475 mtph)

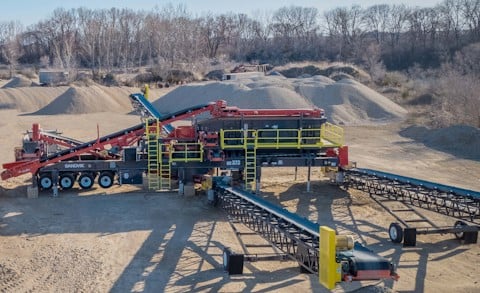

Electrically-driven and fully assembled on a quad axle trailer frame, the UK373 offers a closed-circuit solution equipped with the Sandvik CH440 cone crusher and a three deck 6' x 20' heavy duty screen to ensure outstanding efficiency, high productivity and reliability.
Features
-
Ideal solution
for your secondary crushing needs
Ideal solution
for your secondary crushing needs
for your secondary crushing needs
-
Integrated ASRi
for optimal performance and operating efficiency
Integrated ASRi
for optimal performance and operating efficiency
for optimal performance and operating efficiency
-
Highly efficient and accurate screening
capability for high productivity
Highly efficient and accurate screening
capability for high productivity
capability for high productivity
-
Easy setting adjustment
for simple and efficient operation
Easy setting adjustment
for simple and efficient operation
for simple and efficient operation
-
Soft starting crusher
with UL Certified control panel
Soft starting crusher
with UL Certified control panel
with UL Certified control panel
Product Data
- Equipment
- Sandvik CH440 cone, 3 deck 6' x 20' horizontal screen
- Max. feed size
- 9 in. (215 mm )
- Capacity
- Up to 527 stph (475 mtph)
- Power
- 428 hp (314 kW)
- Transport length
- 71.1 ft (21.9 m)
- Equipment
- Sandvik CH440 cone, 3 deck 6' x 20' horizontal screen
- Max. feed size
- 9 in. (215 mm )
- Capacity
- Up to 527 stph (475 mtph)
- Power
- 428 hp (314 kW)
- Transport length
- 71.1 ft (21.9 m)
- Transport width
- 12.6 ft (3.8 m)
- Transport height
- 14.5 ft (4.4 m)
- Weight
- 153,000 lb (62,500 kg)
Please note all weights and dimensions are for standard units only.
Additional product information
-
UK373
The UK373 benefits from user friendly features such as hydraulically adjustable settings, and a choice of different crushing chambers and throws. This enables fine tuning to match your required specification and maximum output.
All features on this machine have been designed with your needs in mind to give you high productivity and increased operator safety. Safety guards, emergency stop buttons and spacious maintenance platforms provide excellent access for service and maintenance. -
Additional advantages
- Low cost per tonne due to electric operation
- Quick to set-up and easy to maintain, resulting in higher uptime and increased productivity
