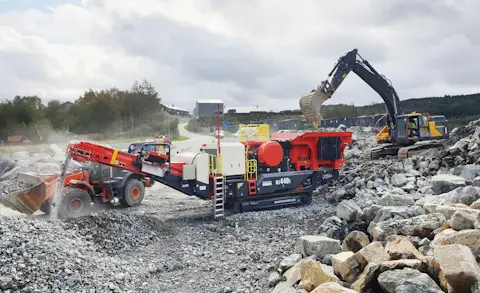

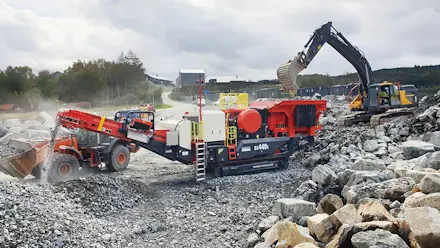

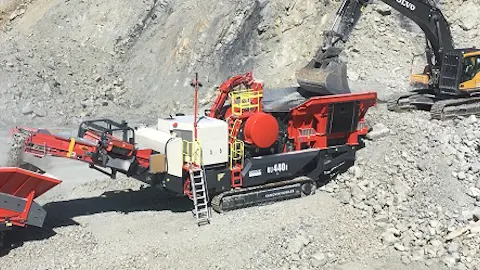

Heavy duty mobile jaw crusher

We have designed Sandvik UJ440i to suit a wide range of different applications. The jaw settings can be adjusted hydraulically and there is a choice of jaw plates to suit the particular needs of your operation.

To ensure that the equipment works at optimum levels for longer periods, the impact zones have a rubber lining to reduce wear. Less downtime means better productivity.

Available in two variants, with or without an under-screen, they are versatile and offer superior rates of production.

Also available within the jaw range are Sandvik UJ440E and UJ640E.

Advantages

• Latest emissions compliant engines for reduced emissions and reduced fuel consumption due to low operating rpm, direct drive and “intelligent” hydraulics
• Automatic feeder control for uninterrupted production
• High reduction and productivity through massive depth of crushing chamber - almost 2m (78 in.)
• Onboard intelligence system for optimal performance and operating efficiency
• Radio remote control as standard for easy and safe operation
• Hanging screen (HS) available for open and closed circuit
• My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
• Security+  extended warranty & service package for higher uptime and peace of mind.

Technical data
Equipment	Sandvik CJ412 jaw crusher
Feed opening	1,200 x 830 mm (47 x 33 in.)
Maximum feed size	750 mm (29.5 in.)
Capacity (up to)	700 mtph (770 stph)
Engine	D13 315 kW (422 hp) *
Transport length	16.60 m (54 ft 5 in.)
Transport width	3.00 m (9 ft 10 in.)
Transport height	3.90 m (12 ft 9 in.)
Weight	63,000 kg (138,890 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

Former Name: CM1208i Mobile jaw crusher
