Tracked cone crushers U-Range

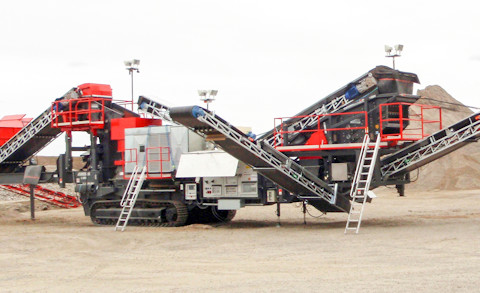

UH440E Cone crusher
- Equipment
- Sandvik CH440 cone crusher
- Max. feed size
- 250 mm (10 in.)
- Capacity
- Up to 400 mtph (440 stph)
Sandvik UH440E has been designed to work with highly abrasive materials in a wide range of applications. It is a highly efficient electrically powered, track-mounted complete process machine with a cone crusher and screen onboard. It is the ideal solution for your secondary and tertiary applications.
Features
-
Ideally suited to produce
high quality end product
-
Advanced process automation
to ensure ease of operation
-
Pre-separation before the cone crusher
to maximize your productivity
-
Advanced process options
to meet your application specific production needs
-
Flexible and easy to configure
for different requirements and climates
Product data
- Equipment
- Sandvik CH440 cone crusher
- Max. feed size
- 250 mm (10 in.)
- Capacity
- Up to 400 mtph (440 stph)
- Power
- TAD 1642 GE Diesel Generator 670 kVA
- Transport length Part 1
- 15.5 m (51.0 ft)
- Transport length Part 2
- 11.9 m (39.0 ft)
- Transport width Part 1
- 3.5 m (11.5 ft)
- Transport width Part 2
- 3.1 m (10.0 ft)
- Transport height Part 1
- 3.90 m (13.00 ft)
- Transport height Part 2
- 3.10 m (11.50 ft)
- Weight Part 1
- 57,000 kg (126,000 lb)
- Weight Part 2
- 13,000 kg (28,660 lb)
Please note all weights and dimensions are for standard units only.
Additional product information
-
UH440E
Sandvik UH440E comes equipped with our high performing Sandvik CH440 Hydrocone crusher that will offer you strength and reliability. It is capable of achieving excellent reduction ratios and product shape at high capacity levels, due to its advanced pre-separation system.
Sandvik UH440E incorporates a dual interlocking and intelligence system that is integrated with ASRi (automatic setting regulation system). The equipment is suitable for many applications with a wide choice of concaves and eccentric bush settings. Sandvik also offers a high capacity product screen and return conveyor for enhanced product quality, to ensure you get the right equipment for your specific task.
Sandvik UH440E is one of the most versatile tracked machines on the market and has been designed to thrive even in the toughest applications.
Other models within this range of cones include Sandvik US440E and UH640E.
-
Additional advantages
- Low emissions and low cost per tonne due to flexible operation through electrical mains or onboard diesel generator
- Security+ extended warranty & service package for higher uptime and peace of mind.
Our tracked cone crushers

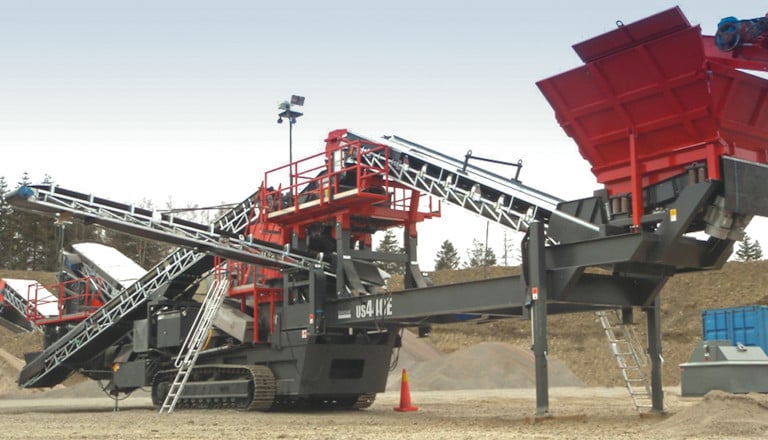

US440E Cone crusher
- Equipment
- Sandvik CS440 cone
- Max. feed size
- 500 mm (20 in.)
- Capacity
- Up to 600 mtph (660 stph)

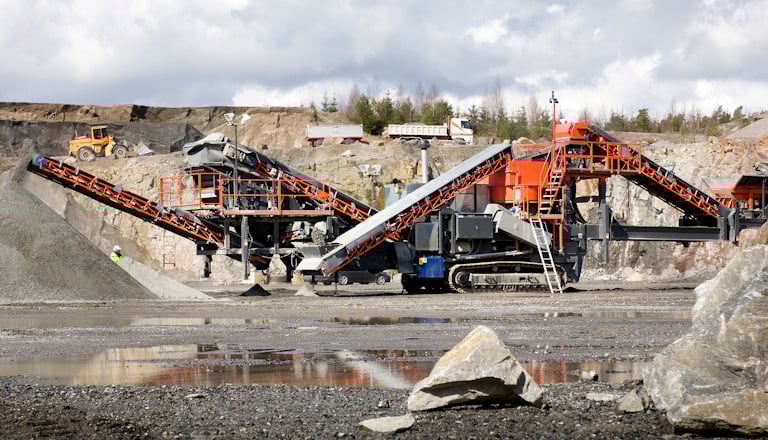

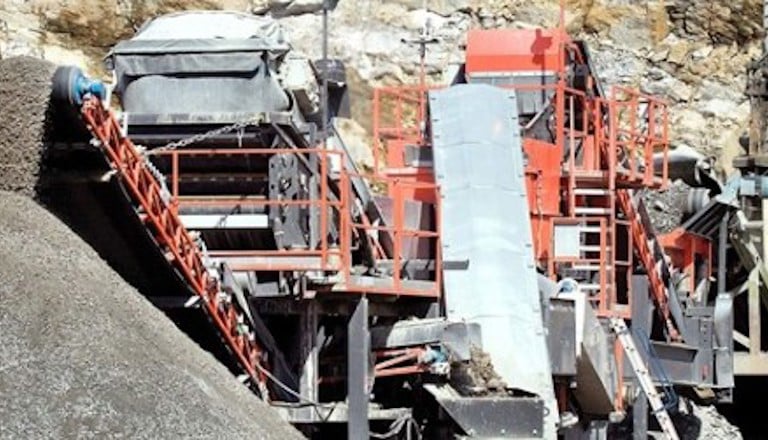

UH640E Cone crusher
- Equipment
- Sandvik CH660 cone crusher
- Max. feed size
- 321 mm (13 in.)
- Capacity
- Up to 600 mtph (660 stph)
US640E Cone crusher
- Equipment
- Sandvik CS660 cone crusher
- Max. feed size
- 620 mm (24 in.)
- Capacity
- Up to 900 mtph (990 stph)
