Compact screens

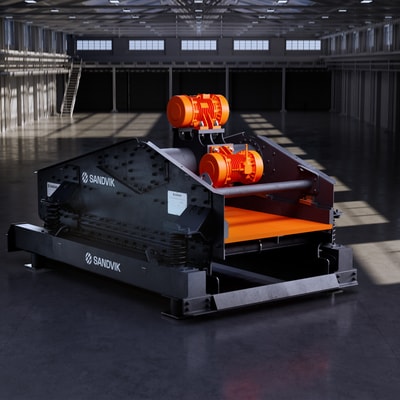

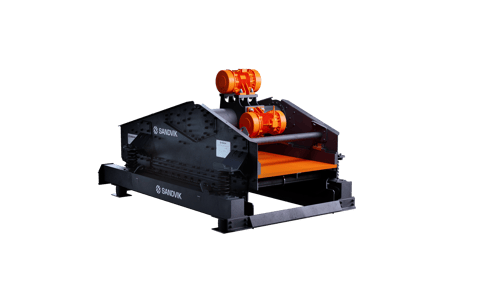

Compact Screens
Standardised screening solutions engineered for gold and similar mineral processing applications, delivering proven performance through validated designs and defined operating limits.
Built for predictable execution
Compact Screens provide a standardised screening platform, built on proven, repeatable designs with defined operating limits.
Unlike bespoke solutions, each model delivers:
- Faster specification and delivery
- Lower project uncertainty
- Consistent performance across sites
-
Faster, lower‑risk project execution
Standardised designs reduce engineering time, rework, and delivery risk
Faster, lower‑risk project execution
Standardised designs reduce engineering time, rework, and delivery risk
Standardised designs reduce engineering time, rework, and delivery risk
-
Reduced engineering and project risk
Proven models minimise redesign, delays, and integration issues
Reduced engineering and project risk
Proven models minimise redesign, delays, and integration issues
Proven models minimise redesign, delays, and integration issues
-
Predictable uptime in gold operations
Defined load envelopes ensure stable, repeatable performance within known limits
Predictable uptime in gold operations
Defined load envelopes ensure stable, repeatable performance within known limits
Defined load envelopes ensure stable, repeatable performance within known limits
Product Data
| Model name | SA0611 | SA1221 | SA1241 | SA1541 | SA1841 | SA1851 | SA2451 |
| Screen Size mm (ft) | 610 x 1220 (2 x 4) |
1220 x 2440 (4 x 8) |
1220 x 3660 (4 x 12) |
1530 x 3660 (5 x 12) |
1840 x 3660 (6 x 12) |
1840 x 4880 (6 x 16) |
2450 x 4880 (8 x 16) |
| Screening area m² (ft²) | 0.74 (8.0) |
2.98 (32.1) |
4.47 (48.1) |
5.58 (60.1) |
6.70 (72.1) |
8.93 (96.1) |
11.91 (128.2) |
| Motor power kW (hp) | 1.2 (1.6) | 3 (4.0) | 4.4 (5.9) | 11 (14.8) | 11 (14.8) | 15 (20.1) | 18 (24.1) |
| Weight kg (lbs) | 555 (1220) |
1058 (2330) |
2136 (4710) |
3426 (7550) |
4060 (8950) |
4699 (10,360) |
5948 (13,110) |
-
Technical highlights
Standardised engineering platform
- Pre‑engineered models based on proven designs
- Enables faster specification and reduces project-specific engineering effort
Defined load envelopes
- Each model operates within clearly validated mechanical and process limits
- Ensures predictable behaviour and reduces risk of misapplication
Validated Performance
- Internally tested designs provide confidence in capacity and service life.
- Supports repeatable operation within defined conditions.
Retrofit‑ready configurations
- Compact layouts and defined interfaces support installation in existing plants
- Reduces integration complexity and site‑related risk
-
Global support you can rely on
- Consistent machines, spare parts and service support worldwide
- Global Sandvik engineering and technical expertise
- Long-term lifecycle support across regions
-
Ideal when you need:
- Confidence in how the screen will perform before installation
- A proven, repeatable solution rather than a bespoke design
- Reduced uncertainty in equipment selection and implementation
- Reliable support throughout the equipment lifecycle
-
