| Model | Grizzly length mm (ft) | Grizzly area m2 | Weight kg (lb) | Feed capacity t/h |
|---|---|---|---|---|
| SV1032 | 1 x 900 (1 x 3) | 0.9 | 3,480 (7,672) | 560 - 840 |
| SV1232 | 1 x 900 (1 x 3) | 1.1 | 3,815 (8,411) | 720 - 1,080 |
| SV1532 | 1 x 900 (1 x 3) | 1.4 | 4,435 (9,778) | 880 - 1,320 |
| SV1832 | 1 x 900 (1 x 3) | 1.6 | 5,195 (11,453) | 1,040 - 1,560 |
| SV2132 | 1 x 900 (1 x 3) | 1.9 | 6,025 (13,283) | 1,200 - 1,800 |
| SV2432 | 1 x 900 (1 x 3) | 2.2 | 6,650 (14,661) | 1,360 - 2,040 |
| SV1052 | 1 x 1,200 (1 x 4) | 1.2 | 4,480 (877) | 560 - 840 |
| SV1252 | 1 x 1,200 (1 x 4) | 1.5 | 5,215 (11,497) | 720 - 1,080 |
| SV1552 | 1 x 1,200 (4.0) | 1.8 | 6,000 (13,228) | 880 - 1,320 |
| SV1852 | 1 x 1,200 (1 x 4) | 2.1 | 6,700 (14,771) | 1,040 - 1,560 |
| SV2152 | 1 x 1,200 (1 x 4) | 2.5 | 8,195 (18,067) | 1,200 - 1,800 |
| SV2452 | 1 x 1,200 (1 x 4) | 2.9 | 8,975 (19,786) | 1,360 - 2,040 |
| SV1062 | 2 x 900 (2 x 3) | 1.8 | 5,965 (13,151) | 560 - 840 |
| SV1262 | 2 x 900 (2 x 3) | 2.2 | 6,855 (15,113) | 720 - 1,080 |
| SV1562 | 2 x 900 (2 x 3) | 2.7 | 8,050 (17,747) | 880 - 1,320 |
| SV1862 | 2 x 900 (2 x 3) | 3.3 | 10,620 (23,413) | 1,040 - 1,560 |
| SV2162 | 2 x 900 (2 x 3) | 3.8 | 10,700 (23,589) | 1,200 - 1,800 |
| SV2462 | 2 x 900 (2 x 3) | 4.3 | 17,700 (39,021) | 1,360 - 2,040 |
Stationary feeders
SV Grizzly Feeders
Sandvik SV grizzly feeders are designed for high capacities (from 170 to 2,040 tons per hour) in primary and secondary feeding applications.
-

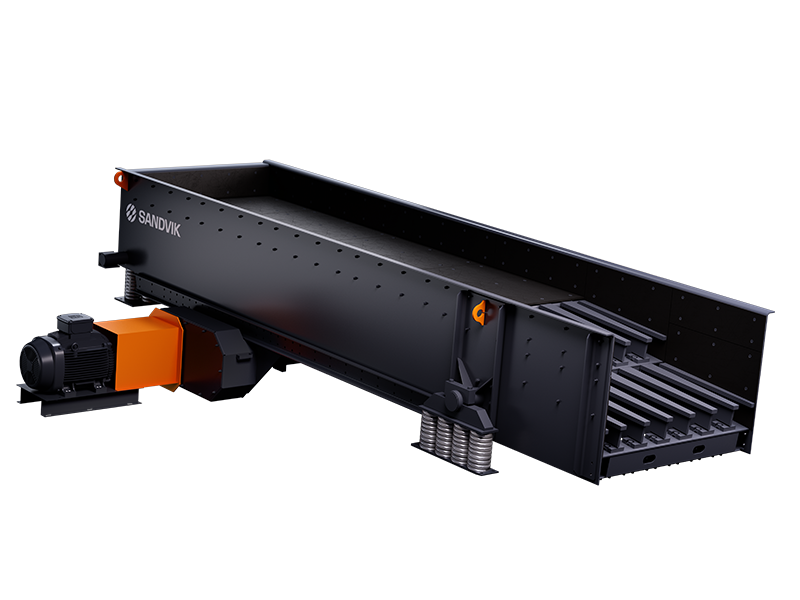

SV Grizzly feeder
The feeder comes in three main types and many sizes to balance demands for capacity, impact resistance, weight and installation dimensions. They have a standard hopper volume of 30 to 200 m3 with a max feed size up to 1,500 millimeters.
SV Grizzly feeder
The feeder comes in three main types and many sizes to balance demands for capacity, impact resistance, weight and installation dimensions. They have a standard hopper volume of 30 to 200 m3 with a max feed size up to 1,500 millimeters.
The feeder comes in three main types and many sizes to balance demands for capacity, impact resistance, weight and installation dimensions. They have a standard hopper volume of 30 to 200 m3 with a max feed size up to 1,500 millimeters.
-
Easy maintenance
With the SV unit, maintenance is easy to carry out, allowing you to maximize uptime and productivity. The heavy-duty double shaft mechanism with gears are in an oil-bath for extended service intervals, and thick replaceable wear plates are mounted on all exposed surfaces ensuring a long life. The mechanism is easily dismounted for simple service.
Easy maintenance
With the SV unit, maintenance is easy to carry out, allowing you to maximize uptime and productivity. The heavy-duty double shaft mechanism with gears are in an oil-bath for extended service intervals, and thick replaceable wear plates are mounted on all exposed surfaces ensuring a long life. The mechanism is easily dismounted for simple service.
With the SV unit, maintenance is easy to carry out, allowing you to maximize uptime and productivity. The heavy-duty double shaft mechanism with gears are in an oil-bath for extended service intervals, and thick replaceable wear plates are mounted on all exposed surfaces ensuring a long life. The mechanism is easily dismounted for simple service.
-
Advantages
- Low profile ensures cost-effective installation
- Easily adjustable features offer tailored performance
- Double shaft mechanism in an oil bath offers extended service intervals
- Easily dismounted mechanism ensures easy servicing
Advantages
- Low profile ensures cost-effective installation
- Easily adjustable features offer tailored performance
- Double shaft mechanism in an oil bath offers extended service intervals
- Easily dismounted mechanism ensures easy servicing
- Low profile ensures cost-effective installation
- Easily adjustable features offer tailored performance
- Double shaft mechanism in an oil bath offers extended service intervals
- Easily dismounted mechanism ensures easy servicing
-
Product data
Product data
Model Grizzly length mm (ft) Grizzly area m2 Weight kg (lb) Feed capacity t/h SV1032 1 x 900 (1 x 3) 0.9 3,480 (7,672) 560 - 840 SV1232 1 x 900 (1 x 3) 1.1 3,815 (8,411) 720 - 1,080 SV1532 1 x 900 (1 x 3) 1.4 4,435 (9,778) 880 - 1,320 SV1832 1 x 900 (1 x 3) 1.6 5,195 (11,453) 1,040 - 1,560 SV2132 1 x 900 (1 x 3) 1.9 6,025 (13,283) 1,200 - 1,800 SV2432 1 x 900 (1 x 3) 2.2 6,650 (14,661) 1,360 - 2,040 SV1052 1 x 1,200 (1 x 4) 1.2 4,480 (877) 560 - 840 SV1252 1 x 1,200 (1 x 4) 1.5 5,215 (11,497) 720 - 1,080 SV1552 1 x 1,200 (4.0) 1.8 6,000 (13,228) 880 - 1,320 SV1852 1 x 1,200 (1 x 4) 2.1 6,700 (14,771) 1,040 - 1,560 SV2152 1 x 1,200 (1 x 4) 2.5 8,195 (18,067) 1,200 - 1,800 SV2452 1 x 1,200 (1 x 4) 2.9 8,975 (19,786) 1,360 - 2,040 SV1062 2 x 900 (2 x 3) 1.8 5,965 (13,151) 560 - 840 SV1262 2 x 900 (2 x 3) 2.2 6,855 (15,113) 720 - 1,080 SV1562 2 x 900 (2 x 3) 2.7 8,050 (17,747) 880 - 1,320 SV1862 2 x 900 (2 x 3) 3.3 10,620 (23,413) 1,040 - 1,560 SV2162 2 x 900 (2 x 3) 3.8 10,700 (23,589) 1,200 - 1,800 SV2462 2 x 900 (2 x 3) 4.3 17,700 (39,021) 1,360 - 2,040 Model Grizzly length mm (ft) Grizzly area m2 Weight kg (lb) Feed capacity t/h SV1032 1 x 900 (1 x 3) 0.9 3,480 (7,672) 560 - 840 SV1232 1 x 900 (1 x 3) 1.1 3,815 (8,411) 720 - 1,080 SV1532 1 x 900 (1 x 3) 1.4 4,435 (9,778) 880 - 1,320 SV1832 1 x 900 (1 x 3) 1.6 5,195 (11,453) 1,040 - 1,560 SV2132 1 x 900 (1 x 3) 1.9 6,025 (13,283) 1,200 - 1,800 SV2432 1 x 900 (1 x 3) 2.2 6,650 (14,661) 1,360 - 2,040 SV1052 1 x 1,200 (1 x 4) 1.2 4,480 (877) 560 - 840 SV1252 1 x 1,200 (1 x 4) 1.5 5,215 (11,497) 720 - 1,080 SV1552 1 x 1,200 (4.0) 1.8 6,000 (13,228) 880 - 1,320 SV1852 1 x 1,200 (1 x 4) 2.1 6,700 (14,771) 1,040 - 1,560 SV2152 1 x 1,200 (1 x 4) 2.5 8,195 (18,067) 1,200 - 1,800 SV2452 1 x 1,200 (1 x 4) 2.9 8,975 (19,786) 1,360 - 2,040 SV1062 2 x 900 (2 x 3) 1.8 5,965 (13,151) 560 - 840 SV1262 2 x 900 (2 x 3) 2.2 6,855 (15,113) 720 - 1,080 SV1562 2 x 900 (2 x 3) 2.7 8,050 (17,747) 880 - 1,320 SV1862 2 x 900 (2 x 3) 3.3 10,620 (23,413) 1,040 - 1,560 SV2162 2 x 900 (2 x 3) 3.8 10,700 (23,589) 1,200 - 1,800 SV2462 2 x 900 (2 x 3) 4.3 17,700 (39,021) 1,360 - 2,040
-
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Reliability and protection package
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
-
