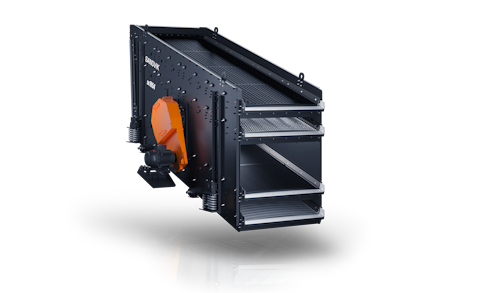

SA Inclined screens

The SA screens are designed for medium and fine screening in quarrying applications. The SA screens can be used as splitter screens to divide flows within a plant and are frequently used for final screening of finished fractions. The screens are circular motion inclined screens in two, three and four deck design.

Need to know more?

Email us Request a quote

The decks can be equipped with any kind of modern synthetic side tensioned screening media or wire mesh.

ADJUSTABILITY

The screen performance can easily be modified according to present conditions by adjusting the following factors:

  • Screen inclination angle (i.e. adjustable spring seats)
  • Stroke length (i.e. extra counterweights)
  • Rotation speed (i.e. transmission belt pulley)

ADVANTAGES

  • Optimized for tensioned media use, simple to install, use and change
  • Low cost option saves resources for other critical investments

Top capex/performance ratio means value for money operation that protects profitability

For more information and data about the screen please download the technical specification.

WN4000 & WN5000 Screening media

A modular screening media of soft rubber with punched or molded apertures, primarily for fine screening in difficult conditions, with a separation between 2-16 mm and a maximum feed size of 50 mm.

WN6000 & WN7000H Screening media

A modular screening media of rubber with punched or molded apertures primarily for fine to medium coarse screening in dry applications with a separation between 10-63 mm and a maximum feed size of 150 mm.

WN8000 Screening media

A modular screening media of polyurethane with molded apertures primarily for fine to medium coarse screening in wet applications with a separation between 1-31.5 mm and a maximum feed size of 100 mm.

RELIABILITY AND PROTECTION PACKAGE

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.
