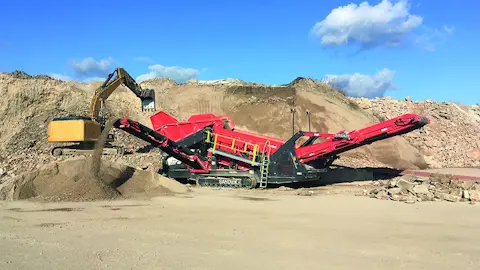

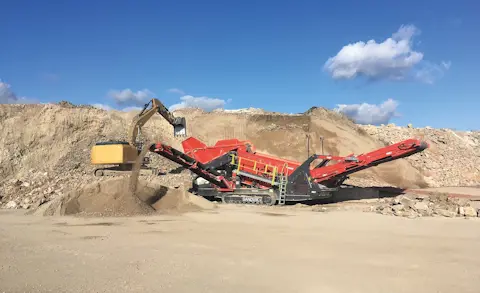

qe342 scalper

Sandvik QE342 is a heavy duty scalper with class leading open scalping area capable of delivering enormous rates of production. Designed to meet the requirements of operators who need a high performing, versatile unit that is easy to operate and transport.

Need to know more?

Email us Request a quote

Its design and attributes means that the production of even the most-hard wearing of materials is facilitated through a wear resistant steel apron feeder, with massive stockpiling capability and over-wide conveyors that maximize delivery.

Its purpose designed crusher style chassis has been developed specifically to accommodate the latest more powerful and efficient engine power packs. Enhancing its versatility, the Sandvik QE342 incorporates a wear resistant rigid hopper which is compatible for 2-way or 3-way split configurations, as well as having the ability to interchange side conveyors thereby demonstrating the ultimate flexibility of the unit. The screen box jack up facility allows easier access to the bottom deck for maintenance and screen media changes.

Other models within this range include Sandvik QE141, QE241 and QE442.

Advantages

  • Heavy duty screen box with high speed and aggressive throw for optimum throughput
  • Reduced cost of ownership through extended hydraulic fluid change intervals from 2000hrs to 4000hrs
  • Latest generation fuel efficient engines provide maximum performance & cost efficiency
  • User-friendly PLC control system with sequential start-stop for speed and ease of operation
  • Operator safety ensured with 2 speed radio tracking and feeder control as standard
  • Spacious power pack with improved service access, hydraulics and lighting
  • Compatible for 2-way or 3-way split configurations
  • Hybrid “e” drive option with electric plug-in lets you choose your most economical and efficient energy source
  • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
  • Security+  extended warranty & service package for higher uptime and peace of mind.
Technical data
Screen box 4.7 x 1.45 m (16 x 5 ft)
Capacity (up to) 500 mtph (551 stph)
Engine C4.4 98kW (132hp)
Transport length 14.83 m (48 ft 8 in.)
Transport width 3 m (9 ft 10 in.)
Transport height 3.4 m (11 ft 2 in.)
Weight 28,567 kg (62,979 lb)

Please note all weights and dimensions are for standard units only.

Lower your operating cost and your carbon footprint

In our drive towards a more sustainable future and helping our customers to lower their operating costs, we have developed a hybrid drive option for our Q-Range of screens and scalpers. This electric plug-in solution allows you to choose between operating in electric-hydraulic or diesel-hydraulic mode, giving you the flexibility to select the energy source which best suits your requirements. This will enable you to lower your operating cost as well as your carbon footprint.

Available on Sandvik QA441 and QA451 models within our screening range and QE342 and QE442 in our scalper offering.
