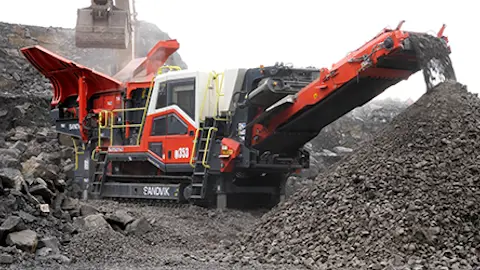

QI353 HSI impact crusher

Does your impact crusher meet your productivity and uptime expectations? Sandvik is revolutionizing impact crushers with the first of our 3-Series 3rd Generation crusher range offering.

Need to know more?

Email us Request a quote

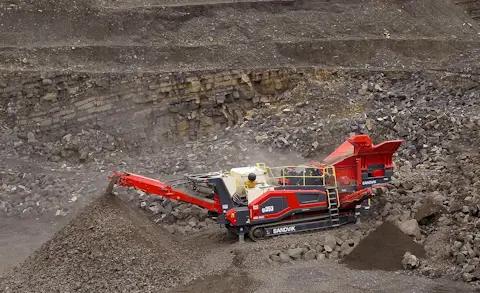

The QI353 is the most versatile, mid-sized mobile impactor available today, designed to demand more uptime than any other. Built utilizing Sandvik’s market leading Prisec™ technology, capable of operating in primary and secondary applications.

Other models within this range include Sandvik QI341 and Sandvik QI442.

Advantages

  • NEW automation system featuring Optik™ intuitive user experience to maximize uptime and boost output
  • Prepared for modular hanging screen as standard to provide a 1, 2 or 3 way split
  • Latest generation fuel efficient powerpack provides maximum performance and cost efficiency
  • Requires 40% less hydraulic oil per service and extended hydraulic oil replacement intervals, overall up to 64 % less hydraulic oil consumed over 10,000 hrs of machine usage (subject to oil sampling)
  • Double-deck pre-screen maximizes crusher throughput, reduces wear costs and energy consumption
  • Pre-screen with choice of media for effective removal of fines, maximizing throughput and reducing wear
  • Spacious platforms provide safe access for service and maintenance
  • My Fleet remote monitoring system with 7 year data subscription to help optimize your machine operation
  • Security+  extended warranty & service package for higher uptime and peace of mind.
Technical data
Equipment Sandvik Prisec™ HSI
Feed opening 1170 x 730 mm (46 x 29 in.)
Maximum feed size 700 mm (28 in.)
Capacity (up to) 400 mtph (441 stph)
Engine C9.3B 310 kW (415 hp) *
Transport length 14.05 m (46 ft 1 in.)
Transport width 3.16 m (10 ft 5 in.) HS Recirc chute fitted
2.8 m (9 ft 3 in.) HS Recirc chute removed
Transport height 3.46 m (11 ft 4 in.)
Weight 46,000 kg (101,412 lb)
Transport length with HS 18.3 m (60 ft 8 in.)
Transport width with HS 3.58 m (11 ft 9 in.)
Transport height with HS 3.66 m (12 ft)
Weight with HS 56,500 kg (124,561 lb)

* Please refer to technical specification sheet for alternative engine options.

Please note all weights and dimensions are for standard units only.

Versatility with modular hanging screen

We offer an optional modular double deck hanging screen (HS) which has been designed to maximize productivity and profitability, giving accurately sized products ready for immediate use. It enables two screened products to be produced and any oversize recirculated back into the crusher.

Cross compatible with our 2-series of crushers; QI442, QH332 and QS332 models, the modular screen is self-contained and can be installed or removed from the plant in less than 30 minutes without the need for any additional lifting equipment on site.

Our patent pending hanging screen option delivers multi-functionality as a 1, 2 or 3-way split screener offering unrivalled flexibility.
