Small range breaker booms

BB600 Breaker boom

2,750 kg (6,050 lb)
Nominal horizontal reach
6.2 m (20.3 ft)
170 °

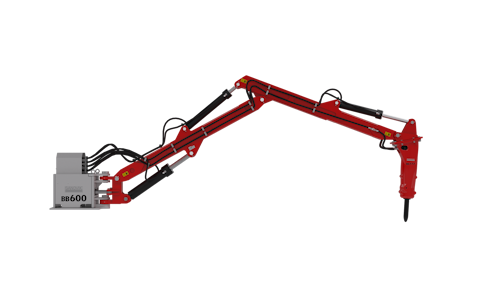

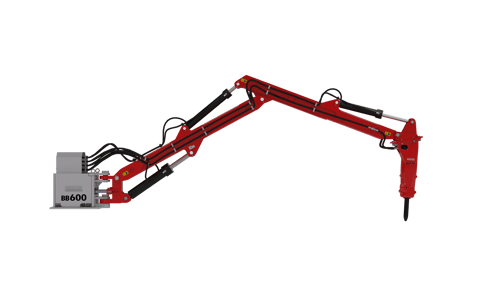

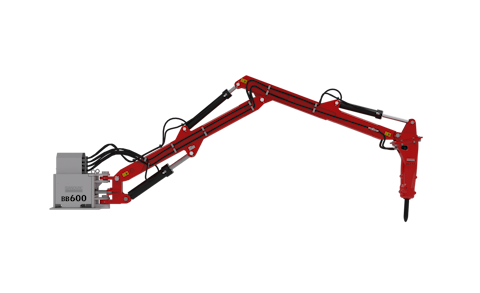

Sandvik BB600 is a multi-purpose breaker boom typically used in quarries, next to a stationary crushing plant's primary crusher to clear blockages and bridging.


2,750 kg (6,050 lb)
Input power
30.0 kW (40.0 hp)
Maximum reach
7.7 m (25.3 ft)
Nominal horizontal reach
6.2 m (20.3 ft)
Nominal vertical reach
5.7 m (18.7 ft)
170 °
Base diameter
Base dimensions
0.96 x 0.81 m (3.15 x 2.66 ft) m

Recommended breaker types BR777i Heavy Duty Small; BR999i Heavy Duty Small; BR1322i; BR1533i; BR1655i
Recommended power packs HU18; HU30

Additional product information

  • BB600

    The BB600 is simple to install and operate, which means you get the maximum amount of uptime. The equipment can be operated directly by the valve levers or with radio controls.
    Reliable BB600 provides a 7.7-meter maximum reach and 170-degree swing for optimum flexibility, even in limited spaces.

  • Additional advantages

    • Sandvik's full electrification makes the boom energy efficient
  • Applications

    • Jaw crushers
    • Impact crushers
