Small range breaker booms

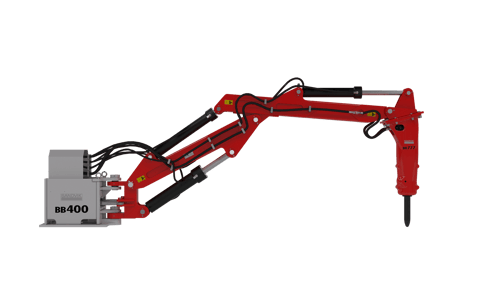

BB400 Breaker boom

Weight: 2,550 kg (5,610 lb)
Nominal horizontal reach: 4.3 m (14.1 ft)
Swing: 170 °

Sandvik BB400 is a multi-purpose breaker boom typically used in quarries, next to a stationary crushing plant's primary crusher to clear blockages and bridging.

Features

Compact design

with easily built foundation
Multi-purpose boom

suitable for use in limited spaces
170° swing

for optimal reach
Heat-treated conical pins

for extended service life

Weight: 2,550 kg (5,610 lb)
Input power: 30.0 kW (40.0 hp)
Maximum reach: 5.8 m (19.0 ft)
Nominal horizontal reach: 4.3 m (14.1 ft)
Nominal vertical reach: 4.3 m (14.1 ft)
Swing: 170 °
Base diameter: m
Base dimensions: 0.96 x 0.81 m (3.15 x 2.66 ft) m

Recommended breaker types BR777i Heavy Duty Small; BR999i Heavy Duty Small; BR1322i; BR1533i; BR1655i
Recommended power packs HU18; HU30

Additional product information

BB400

The BB400 is simple to install and operate, which means you get the maximum amount of uptime. The equipment can be operated directly by the valve levers or with radio control.
Robust and reliable BB400 provides a 5.8-meter maximum reach and 170-degree swing for optimum flexibility, even in limited spaces.
Additional advantages
- Robust and reliable construction to ensure easy maintenance
- Sandvik's full electrification makes the boom energy efficient
Applications
- Jaw crushers
- Impact crushers
