Small range breaker booms

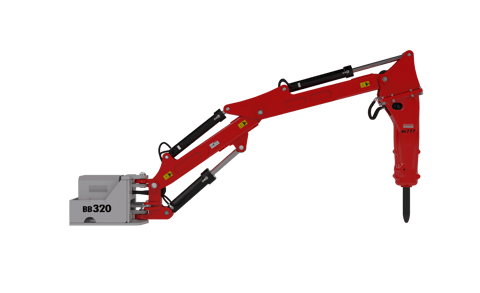

BB320 Breaker boom

Weight
1,400 kg (3,086 lb)
Nominal horizontal reach
3.5 m (11.5 ft)
Swing
170 °

Sandvik BB320 is lightweight, multi-purpose boom typicaly used in quarries, next to the primary crusher of a stationary crushing plant to clear blockages and bridging.

Features

Weight
1,400 kg (3,086 lb)
Input power
30.0 kW (40.0 hp)
Maximum reach
5.2 m (17.0 ft)
Nominal horizontal reach
3.5 m (11.5 ft)
Nominal vertical reach
3.8 m (12.5 ft)
Swing
170 °
Base diameter
m
Base dimensions
0.93 x 0.69 m (3.05 x 2.64 ft) m

Recommended breaker types BR555i Heavy Duty Small; BR777i Heavy Duty Small; BR999i Heavy Duty Small
Recommended power packs HU18

Additional product information

  • BB320

    The BB320 is simple to install and operate, which means you get the maximum amount of uptime. The equipment can be operated directly by the valve levers or with radio controls.
    Compact sized BB320 provides a 5.2-meter maximum reach and 170-degree swing for optimum flexibility even in limited spaces.

  • Additional advantages

    • Easy to install and operate for maximized uptime
    • Internal hoses minimize the risk of damages
    • Sandvik's full electrification makes the boom energy efficient
  • Applications

    • Jaw crushers
    • Impact crushers
    • Mobile crushers
