Small range breaker booms

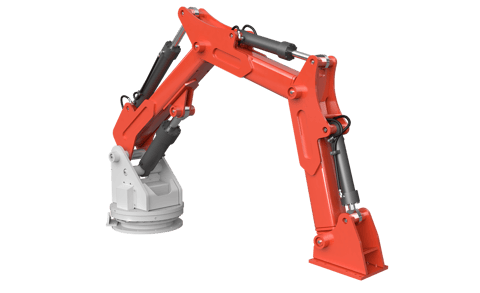

BB1425 Breaker boom
- Weight
- 1,700 kg (3,750 lb)
- Nominal horizontal reach
- 4.2 m (13.8 ft)
- Swing
- 360 °
Sandvik BB1425 breaker boom have been designed to be mounted on mobile crushing plants and impact crushers to clear blockages and bridging.
Features
-
Easy to install and operate
for maximum uptime
-
Compact and lightweight boom
suitable for use in limited spaces
-
360° swing
for optimal reach and minimized pedestal footprint
-
Heat-treated conical Expander® pins
for a long service life and easy removal when replacing the bushings
- Weight
- 1,700 kg (3,750 lb)
- Input power
- 18.5 kW (25.0 hp)
- Maximum reach
- 5.9 m (19.4 ft)
- Nominal horizontal reach
- 4.2 m (13.8 ft)
- Nominal vertical reach
- 3.8 m (12.5 ft)
- Swing
- 360 °
- Base diameter
- 0.8 m (2.6 ft)
Recommended breaker types BR555i Heavy Duty Small; BR777i Heavy Duty Small; BR999i Heavy Duty Small
Recommended power packs HU18
Additional product information
-
BB1425
The BB1425 is easy to install and operate, which ensures you get the maximum amount of uptime. The boom can be operated directly by the valve levers or with radio controls.
Durable and reliable BB1425 provides a 5.9-meter maximum reach with a full 360-degree swing for optimum flexibility, even when space is limited. -
Additional advantages
- Internal hoses minimize the risk of damages
- Sandvik's full electrification makes the boom energy efficient
-
Applications
- Mobile crushers
