Small range breaker booms

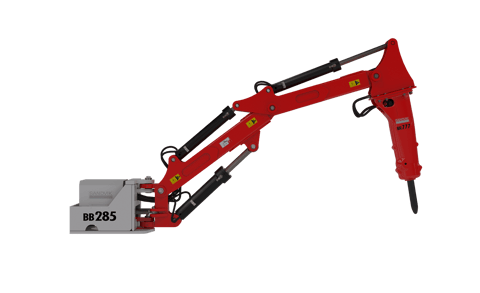

BB285 Breaker boom
- Weight
- 1,355 kg (2,987 lb)
- Nominal horizontal reach
- 3.2 m (10.5 ft)
- Swing
- 170 °
Sandvik BB285 is a lightweight, multi-purpose breaker boom typically used in quarries, next to the primary crusher of a stationary crushing plant to clear blockages and bridging.
Features
-
Compact, multi-purpose boom
suitable for use in limited spaces
-
Lightweight design
-
170° swing
for optimal reach
-
Heat-treated conical Expander® pins
offer a long service life and easy removal when replacing the bushings
- Weight
- 1,355 kg (2,987 lb)
- Input power
- 18.5 kW (25.0 hp)
- Maximum reach
- 4.7 m (15.4 ft)
- Nominal horizontal reach
- 3.2 m (10.5 ft)
- Nominal vertical reach
- 3.3 m (11.5 ft)
- Swing
- 170 °
- Base dimensions
- 0.93 x 0.69 m (3.05 x 2.64 ft) m
Recommended breaker types BR555i Heavy Duty Small; BR777i Heavy Duty Small; BR999i Heavy Duty Small
Recommended power packs HU18
Additional product information
-
BB285
The BB285 is simple to install and operate, which means you get the maximum amount of uptime. The equipment can be operated directly by the valve levers or with radio controls.
Compact sized BB285 breaker boom provides a 4.7-meter maximum reach and 170-degree swing for optimum flexibility, even in limited spaces. -
Additional advantages
- Easy to install and operate for maximized uptime
- Internal hoses minimize the risk of damages
- Sandvik's full electrification makes the boom energy efficient
-
Applications
- Jaw crushers
- Impact crushers
- Mobile crushers
