Sandvik offer a range of double and triple deck Doublescreen solutions with the versatility to handle virtually every application with the utmost precision. There's often a fine line between what you can sell and what goes to waste. We understand the difference, which is why Sandvik offers a range of mobile screeners that can be matched to your specific needs.

Double up your mobile screener performance

Choose from a variety of mobile screeners designed for optimal performance and flexibility. The Sandvik Doublescreen technology utilizes two independent, inline screenboxes. This results in a marked increase in throughput, control and screening efficiency compared to a traditional single box design. There's a robust, durable Sandvik mobile screener for the most specialized screening applications. When a single screen won't suffice, take your pick of two or three deck models that cover the full range of screening challenges.

Model Weight kg (lbs) Screener size m (ft) Capacity up to mtph (stph) No. of products
QA335 26,520 (58,467) 4 x 1.5 (13 x 5)
double deck		 400 (441) 3
QA442 33,000 (72,752) 6 x 1.5 (20 x 5)
double deck		 600 (661) 3
QA442e 32,962 (72,668) 6 x 1.5 (20 x 5)
double deck		 600 (661) 3
QA452 40,200 (88,625) 6 x 1.5 (20 x 5)
triple deck		 600 (661) 4
QA452e 41,260 (90,962) 6 x 1.5 (20 x 5)
triple deck		 600 (661) 4

Please note all weights and dimensions are for standard units only.

Downloads

mobiles-qrange-brochure-english (PDF document, 29.9 MB)

Case stories

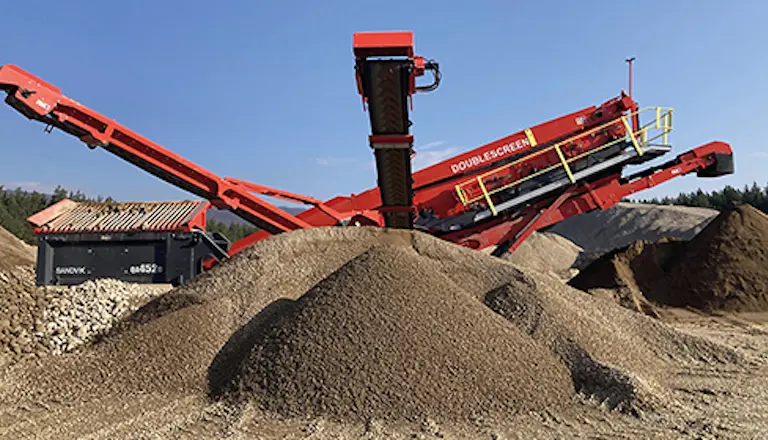

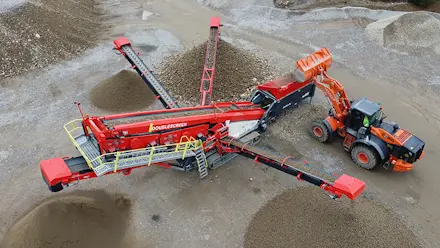

Sandvik QA452 offers an enhanced 3-Deck Doublescreen Solution

Sandvik is delighted to announce its new QA452 tracked mobile, 3-deck sizing screen, which has been developed with uptime, productivity, sustainability, and lower cost of ownership in mind.
Read more about First QI442 HS in China provides multifunctional solution

  • Unique mobile screening solutions

    We understand the screening challenges that you face on a day to day basis. Every site, every situation, every screening application has its own individual demands. Productivity and performance depend on how well you meet those demands.

    When uncompromising separation accuracy is a key consideration, Sandvik quality and flexibility are the key to success. Our single-screen units are the ideal answer for recycling applications and contractors. For more complex screening demands, our patented Sandvik Doublescreen system – available in double or triple deck configurations – offers unsurpassed mobile screening capabilities. Uniquely aggressive vibration actions ensure high productivity, and convenient wraparound walkways allow for quick, easy maintenance. The wide range of options available with our mobile screens give you the ability to configure your system to suit a variety of screening applications including aggregates, recycling, and sand and gravel.

    As with every Sandvik product, experience, insight and technology set our screening solutions apart from the crowd.

  • WX-Range of screen media

    Now you no longer have to choose between the high accuracy of wire media and the durability of rubber screens. The Sandvik WX-Range of rubber media is now available for Sandvik tracked range of mobile screening and scalping equipment.

    Tailor made for the required specification, there are three different types of media within the WX-Range available for mobile equipment. These cover a wide range of applications from fine to medium, to coarse, and more difficult applications; the WX6000, WX6500 and WX7000 respectively. All are dependable, flexible screening solutions offering up to 10 times longer wear life. They are lighter and safer to handle and have a low environmental impact. There is a 50% noise reduction compared to wire mesh.
