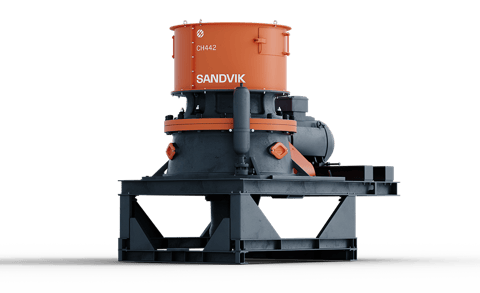

Sandvik CH442 Cone Crusher for secondary, high-reduction tertiary or pebble crushing applications

CH442 is a high-capacity crusher for secondary, high-reduction tertiary or pebble crushing applications with a backing compound-free design, a strengthened top shell and a new main shaft. It comes with a 3-year standard warranty.

New design without backing compounds

saves time and reduces exposure of staff
to potentially harmful agents.

New design without backing compounds

saves time and reduces exposure of staff
to potentially harmful agents.

saves time and reduces exposure of staff
to potentially harmful agents.
ACS-c 5 ASRi

provides automated setting regulation, and makes it easy to assign role-based permissions for system monitoring, troubleshooting and performance optimization.

ACS-c 5 ASRi

provides automated setting regulation, and makes it easy to assign role-based permissions for system monitoring, troubleshooting and performance optimization.

provides automated setting regulation, and makes it easy to assign role-based permissions for system monitoring, troubleshooting and performance optimization.
Hydroset™ system

provides safety and setting-adjustment functions

Hydroset™ system

provides safety and setting-adjustment functions

provides safety and setting-adjustment functions
Unibody mainframe

ensures optimal strength and less maintenance

Unibody mainframe

ensures optimal strength and less maintenance

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance

Lifting from above

minimizes risks and allows for safer maintenance

minimizes risks and allows for safer maintenance
Easy to maintain and reliable

Easy to maintain and reliable

Product data

Nominal capacity: 58 - 336 mtph (64 - 370 stph)
Max. feed size: 250.0 mm (9.8 in.)
Motor power: 220 kW (295 hp)
Closed side setting (CSS) range: 4.0 - 48.0 mm (0.3 - 1.8 in.)
Eccentric throw range: 13.0 - 44.0 mm (0.6 - 1.7 in.)
Mantles (inner liners): A, B, EF, Flexifeed A/B, HC
Concaves (outer liners): EC, C, MC, M, MF, F, EF
No of chambers: 7
Weight: 16,960 kg (37,390 lb)
ACS-c 5 ASRi: Optional
Lubrication tank: Standard

Nominal capacity: 58 - 336 mtph (64 - 370 stph)
Max. feed size: 250.0 mm (9.8 in.)
Motor power: 220 kW (295 hp)
Closed side setting (CSS) range: 4.0 - 48.0 mm (0.3 - 1.8 in.)
Eccentric throw range: 13.0 - 44.0 mm (0.6 - 1.7 in.)
Mantles (inner liners): A, B, EF, Flexifeed A/B, HC
Concaves (outer liners): EC, C, MC, M, MF, F, EF
No of chambers: 7
Weight: 16,960 kg (37,390 lb)
ACS-c 5 ASRi: Optional
Lubrication tank: Standard

Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw.

The chambers available are:

EC = Extra coarse
C = Coarse
MC = Medium coarse
M = Medium
MF = Medium fine
F = Fine
EF = Extra fine

Several standard crushing chambers are available for each model. The crushers can easily be matched to changes in production selecting the right crushing chamber and eccentric throw.

The chambers available are:

EC = Extra coarse
C = Coarse
MC = Medium coarse
M = Medium
MF = Medium fine
F = Fine
EF = Extra fine

This crusher is also available on the following mobile unit:

UH640E

Sandvik UH640E is designed to be a flexible, highly productive secondary or tertiary cone crusher. This unique solution is capable of producing finished sized products due to the integral product screen and closed circuit operation

UH640E Mobile unit

Additional product information

This cone crusher has a hydraulically supported main shaft that is supported at both ends.

Sandvik CH660 has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary application or a high-reduction tertiary or pebble-crushing application. Achieve high performance by selecting the Sandvik crushing chamber that's right for your application.

The equipment is designed for easy maintenance, meaning you can fully optimise your uptime, and maintain high levels of productivity.
