Stationary cone crushers 400-600 series

CS440

Nominal capacity
191 - 510 mtph (210 - 562 stph)
Max. feed size
500.0 mm (19.7 in.)
Motor power
220 kW (295 hp)

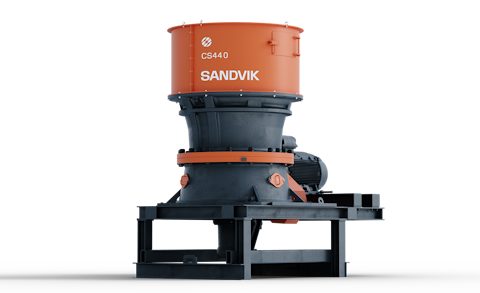

Sandvik CS440 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

Product data

Nominal capacity
191 - 510 mtph (210 - 562 stph)
Max. feed size
500.0 mm (19.7 in.)
Motor power
220 kW (295 hp)
Closed side setting (CSS) range
25.0 - 57.0 mm (1.0 - 2.2 in.)
Eccentric throw range
20.0 - 36.0 mm (0.8 - 1.4 in.)
Mantles (inner liners)
A, B
Concaves (outer liners)
MC, C, EC
No of chambers
3
Weight
21,637 kg (47,699 lb)
Automation (ASRi)
Optional
Lubrication tank
Standard
Offline lubrication filtration unit
Optional

Three standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by selection of crushing chamber and eccentric throw:

  • MC = Medium coarse
  • C = Coarse
  • EC = Extra coarse

This crusher is also available on the following mobile units:

US440i

Sandvik US440i is the ultimate heavy duty cone crusher capable of accepting a feed size of up to 500 mm (19.7 in.). We have designed this unit to suit the specific needs of large mine or quarry operators, but due to being equipped with our market-leading Sandvik CS440 cone crusher, it can be used for a much wider range of applications.

US440E

Sandvik US440E mobile cone crusher is a highly efficient electrically powered, track-mounted complete process machine with a cone crusher and screen onboard. It has been designed to meet the demands of quarry operators, construction companies, mining companies or contractors working with highly abrasive materials, and it is the ideal solution for your secondary and tertiary applications.

Additional product information

This equipment is designed to be easy to maintain and service, allowing you to maximize your uptime and productivity, while the unibody mainframe gives Sandvik CS440 strength and durability.

The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels, ensuring it consistently produces excellent quality output.
