Extra large range breaker booms

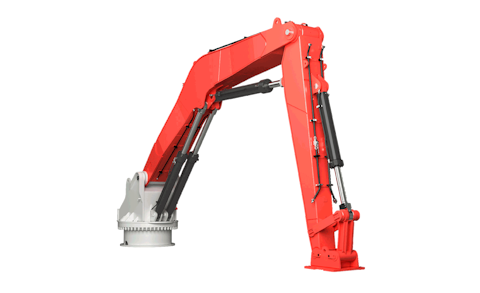

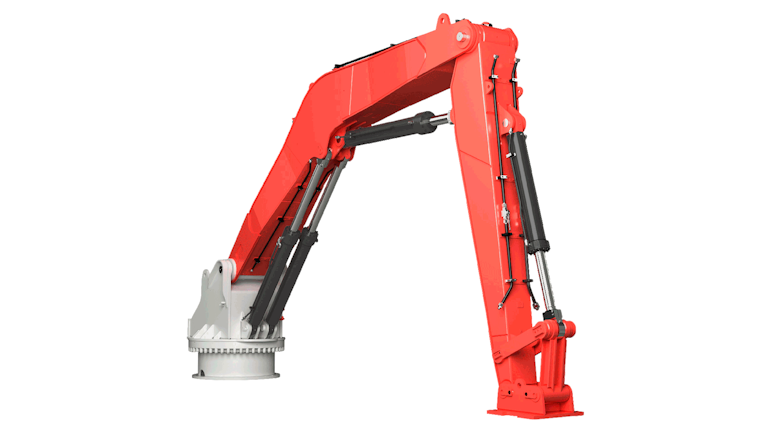

BB8120 Breaker boom

Weight
16,500 kg (36,300 )
Nominal horizontal reach
12.2 m (40.0 ft)
Swing
170 °

Sandvik BB8120 breaker boom enables the hydraulic breaker to be optimally positioned and applied, allowing blockages or bridging of rock to be broken and cleared quickly and efficiently.

Features

Product data

Weight
16,500 kg (36,300 )
Input power
55 kW (74 hp)
Maximum reach
14.5 m (48.0 ft)
Nominal horizontal reach
12.2 m (40.0 ft)
Nominal vertical reach
10.6 m (34.8 ft)
Swing
170 °
Base diameter
2.29 m (7.50 ft)

Recommended breaker types BR2577i; BR3288i; BR4099i
Recommended power packs HU45; HU55

Additional product information

  • BB8120 breaker boom

    Sandvik BB8120 breaker boom is versatile, and can be used in many applications, including grizzlies and gyratory crushers. The modular design means the equipment is easy to service, and parts can be replaced with minimal fuss, meaning less downtime overall.
    Durable and productive BB8120 provides a 14.5-meter maximum reach with a 170-degree swing for optimum flexibility. The boom is specially designed to maintain optimum crusher throughput, increase crusher efficiency and extend the life of the crusher.​​

  • Additional advantages

    • Modular design allows parts to be easily replaced
    • Heat-treated conical pins for extended service life
    • Pedestal angle can be adjusted
    • Sandvik full electrification makes the boom energy efficient
  • Applications

    • Gyratory crushers
    • Grizzlies

Our extra large range breaker booms

Extra large range breaker booms

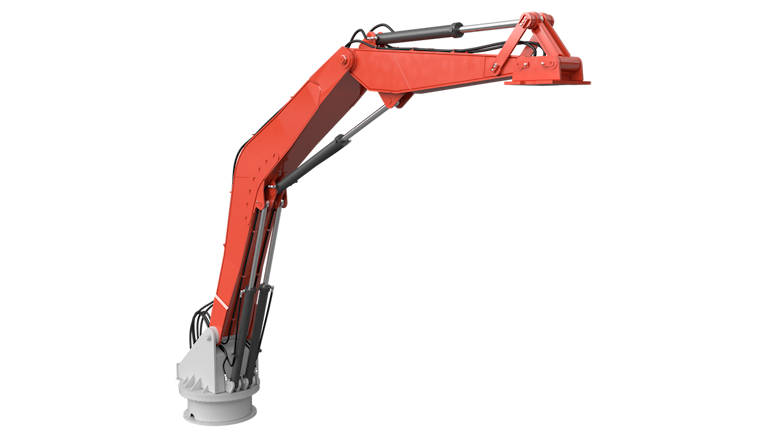

BB8094R Breaker boom

BB8094R Breaker boom
Extra large range breaker booms

BB8102R Breaker boom

BB8102R Breaker boom
Extra large range breaker booms

BB8120R Breaker boom

BB8120R Breaker boom
Extra large range breaker booms

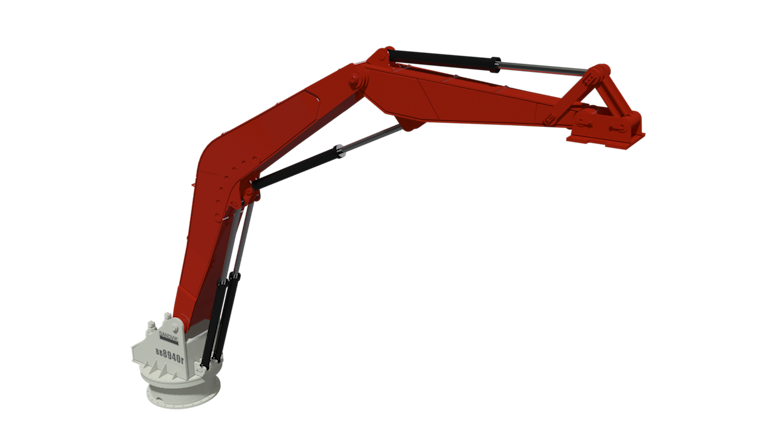

BB8940 Breaker boom

BB8940 Breaker boom
Extra large range breaker booms

BB8102 Breaker boom

BB8102 Breaker boom
Extra large range breaker booms

BB8140R Breaker boom

BB8140R Breaker boom
Extra large range breaker booms

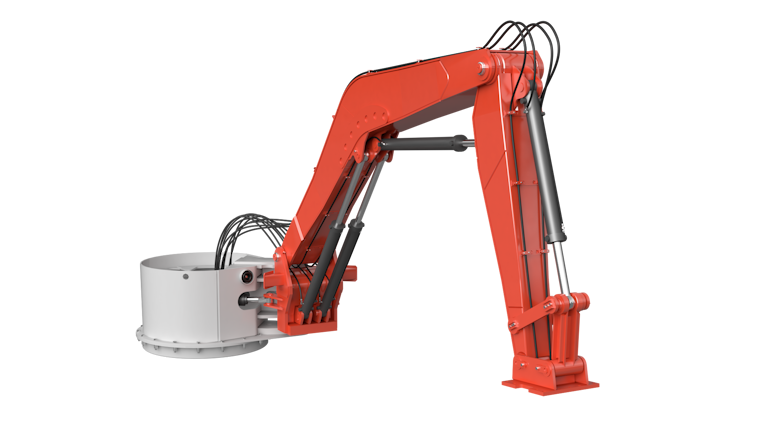

BB8140 Breaker boom
