Extra large range breaker booms

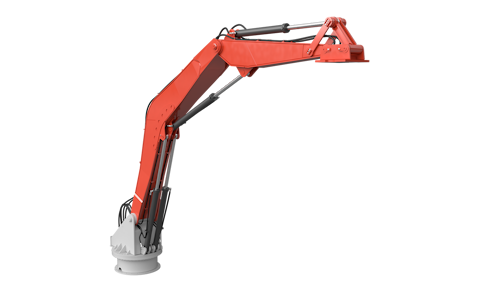

BB8094R Breaker boom

Weight
11,000 kg (29,472 )
Nominal horizontal reach
9.8 m (32.1 ft)
Swing
360 °

Sandvik BB8094R breaker boom is versatile, and can be used in many applications, including grizzlies and stationary crushers. The modular design means the equipment is easy to service, and parts can be replaced with minimal fuss, meaning less downtime overall.

Features

Product data

Weight
11,000 kg (29,472 )
Input power
55 kW (74 hp)
Maximum reach
12.7 m (41.6 ft)
Nominal horizontal reach
9.8 m (32.1 ft)
Nominal vertical reach
9.0 m (29.5 ft)
Swing
360 °
Base diameter
1.40 m (4.60 ft)

Recommended breaker types BR2577i; BR3288i; BR4099i
Recommended power packs HU45; HU55

Additional product information

  • BB8094R breaker boom

    Sandvik BB8094R breaker boom enables the hydraulic breaker to be optimally positioned and applied, allowing blockages or bridging of rock to be broken and cleared quickly and efficiently.
    Durable and productive BB8094R provides a 12.7-meter maximum reach with a full 360-degree swing for optimum flexibility. The boom is specially designed to maintain optimum crusher throughput, increase crusher efficiency and extend the life of the crusher.​​

  • Additional advantages

    • Modular design allows parts to be easily replaced
    • Heat-treated conical pins for extended service life
    • Pedestal angle can be adjusted
    • Sandvik full electrification makes the boom energy efficient
  • Applications

    • Gyratory crushers
    • Grizzlies
