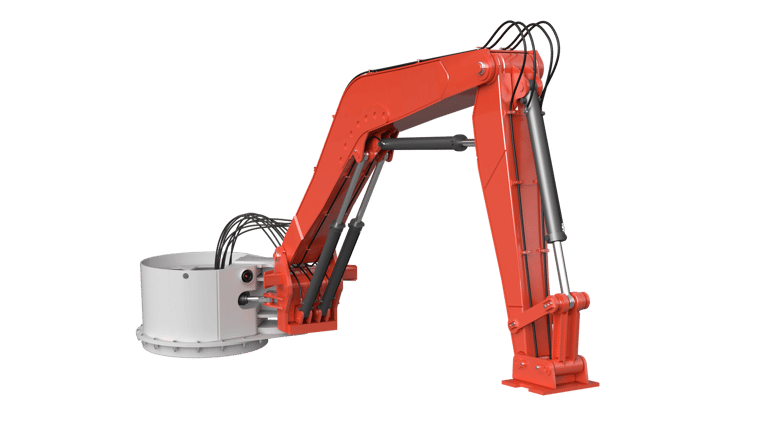

BB8102R Breaker boom

Sandvik BB8102R breaker boom is versatile, and can be used in many applications, including grizzlies and gyratory crushers. The modular design means the equipment is easy to service, and parts can be replaced with minimal fuss, meaning less downtime overall.

Need to know more?

Email us Request a quote

Sandvik BB8102R breaker boom enables the hydraulic breaker to be optimally positioned and applied, allowing blockages or bridging of rock to be broken and cleared quickly and efficiently.

Durable and productive BB8102R provides a 13.4-meter maximum reach with a full 360-degree swing for optimum flexibility. The boom is specially designed to maintain optimum crusher throughput, increase crusher efficiency and extend the life of the crusher.​​

Applications

  • Gyratory crushers
  • Grizzlies

Advantages

  • Heavy-duty design reduce overall wear and lowers operating costs
  • Modular design allows parts to be easily replaced.
  • Heat-treated conical pins for extended service life
  • High twist capacity increases productivity
  • 360° swing offers optimal flexibility
  • Round pedestal for even stress distribution
  • Pedestal angle can be adjusted
  • Sandvik full electrification makes the boom energy efficient
Technical data
Weight, kg 11,500
Maximum reach, m 13.4
Nominal horizontal reach (H), m 10.5
Nominal vertical reach (V), m 9.8
Swing, ° 360
Base diameter, m 1.4
Recommended breaker types BR2577i, BR3288i, BR4099i
Recommended power packs HU45, HU55
