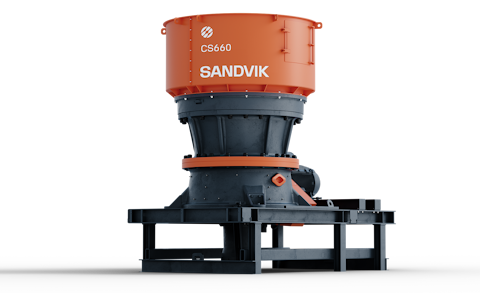

Sandvik CS660 Cone Crusher For High Capacity Applications

Sandvik CS660 cone crusher has a hydraulically supported main shaft that is supported at both ends. It also has a robust crusher design, adjustable eccentric throw, and a constant intake opening. This crusher is suitable for a high-capacity secondary crushing application.

Hydroset™ system

provides safety and setting-adjustment functions
ASRi™

automatically adapts crusher to feed conditions
Unibody mainframe

ensures optimal strength and less maintenance
Lifting from above

minimizes risks and allows for safer maintenance

Reliability and protection package

Unpredictability is the enemy of productivity. The Sandvik Reliability and Protection package is designed to keep you in control of your costs and efficiency at all times. It includes on-site periodic inspections that enable proactive preventative maintenance recommendations, trend analysis, and our exclusive 1 + 2 years equipment warranty – protecting your investment and giving you an improved cost of ownership.

Product data

Nominal capacity: 314 - 908 mtph (346 - 1,000 stph)
Max. feed size: 622.0 mm (24.5 in.)
Motor power: 315 kW (422 hp)
Closed side setting (CSS) range: 29.0 - 83.0 mm (1.1 - 3.3 in.)
Eccentric throw range: 20.0 - 40.0 mm (0.8 - 1.6 in.)
Mantles (inner liners): A, B
Concaves (outer liners): C, EC, MC
Weight: 40,254 kg (88,743 lb)
Automation (ASRi): Optional
Lubrication tank: Standard
Offline lubrication filtration unit: Optional

Two standard crushing chambers are available for each model. The crushers can easily be matched to changes in production by selection of crushing chamber and eccentric throw:

C = Coarse
EC = Extra coarse

This crusher is also available on the following mobile unit:

US640E

Sandvik UH640E is designed to be a flexible, highly productive secondary or tertiary cone crusher. This unique solution is capable of producing finished sized products due to the integral product screen and closed circuit operation

US640E Mobile unit

Additional product information

Sandvik CS660 cone crusher has a large intake capability and a high capacity in relation to its size. The Automatic Setting Regulation control system (ASRi™) enables real-time performance management, giving you a machine that consistently runs at optimum levels, ensuring it consistently produces excellent quality output.

It's a durable, reliable and productive machine which is designed to be easily serviced, so you can benefit from optimum levels of uptime.
